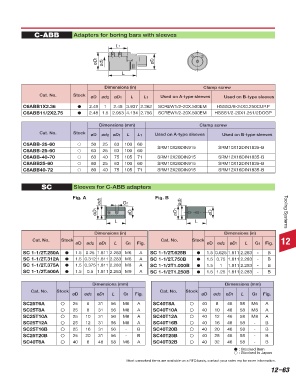

Page 971 - Tungaloy Catalog

C-ABB Adapters for boring bars with sleeves

L1

øD1 ød2 øD

L

Dimensions (in) Clamp screw
Cat. No. Stock øD ød2 øD1 L L1 Used on A-type sleeves Used on B-type sleeves

C6ABB1X2.36  2.48 1 2.48 3.937 2.362 SCREW1/2-20X.500EM HSSS3/8-24X0.250CUP.P
C6ABB11/2X2.75  2.48 1.5 2.953 4.134 2.756 SCREW1/2-20X.500EM HSSS1/2-20X1.251/2DOGP

Dimensions (mm) Clamp screw
Cat. No. Stock øD ød2 øD1 L L1 Used on A-type sleeves Used on B-type sleeves

C5ABB-25-60  50 25 63 100 60
C6ABB-25-60  63 25 63 100 60 SRM10X20DIN915 SRM10X12DIN1835-B
C6ABB-40-70  63 40 75 105 71 SRM12X20DIN915 SRM12X16DIN1835-B
C8ABB25-60  80 25 63 100 60 SRM10X20DIN915 SRM10X12DIN1835-B
C8ABB40-72  80 40 75 105 71 SRM12X20DIN915 SRM12X16DIN1835-B

SC Sleeves for C-ABB adapters

Fig. A Fig. B
ød2 G1 ød2
øD1 øD øD1 øD Tooling Systems

L L

Dimensions (in) Dimensions (in)
Cat. No. Stock Cat. No. Stock 12
øD ød2 øD1 L G1 Fig. øD ød2 øD1 L G1 Fig.
SC 1-1/2T.250A  1.5 0.25 1.811 2.283 M6 A SC 1-1/2T.625B  1.5 0.625 1.811 2.283 - B
SC 1-1/2T.312A  1.5 0.312 1.811 2.283 M6 A SC 1-1/2T.750B  1.5 0.75 1.811 2.283 - B
SC 1-1/2T.375A  1.5 0.375 1.811 2.283 M8 A SC 1-1/2T1.000B  1.5 1 1.811 2.283 - B
SC 1-1/2T.500A  1.5 0.5 1.811 2.283 M9 A SC 1-1/2T1.250B  1.5 1.25 1.811 2.283 - B

Dimensions (mm) Dimensions (mm)
Cat. No. Stock Cat. No. Stock
øD ød2 øD1 L G1 Fig. øD ød2 øD1 L G1 Fig.
SC25T6A 25 6 31 56 M6 A SC40T8A 40 8 46 58 M6 A
SC25T8A 25 8 31 56 M8 A SC40T10A 40 10 46 58 M8 A
SC25T10A 25 10 31 56 M8 A SC40T12A 40 12 46 58 M8 A
SC25T12A 25 12 31 56 M8 A SC40T16B 40 16 46 58 - B
SC25T16B 25 16 31 56 - B SC40T20B 40 20 46 58 - B
SC25T20B 25 20 31 56 - B SC40T25B 40 25 46 58 - B
SC40T6A 40 6 46 58 M6 A SC40T32B 40 32 46 58 - B
 : Stocked item
 : Stocked in Japan
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
12–63
