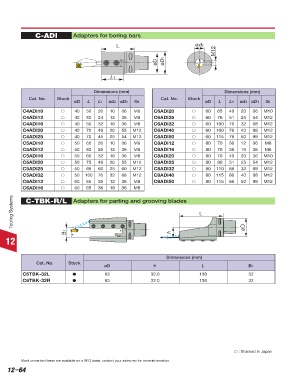

Page 972 - Tungaloy Catalog

C-ADI Adapters for boring bars

L ød2
M12

øD øD1

L1

Dimensions (mm) Dimensions (mm)
Cat. No. Stock Cat. No. Stock
øD L L1 ød2 øD1 G1 øD L L1 ød2 øD1 G1
C4ADI10  40 50 20 10 36 M6 C6ADI20  60 65 40 20 36 M10
C4ADI12  40 50 24 12 36 M8 C6ADI25  60 76 51 25 54 M12
C4ADI16  40 50 32 16 36 M8 C6ADI32  60 100 76 32 68 M12
C4ADI20  40 70 49 20 55 M12 C6ADI40  60 100 76 40 98 M12
C4ADI25  40 70 45 25 54 M12 C6ADI50  60 115 76 50 98 M12
C5ADI10  50 60 26 10 36 M6 C8ADI12  80 70 36 12 36 M8
C5ADI12  50 60 26 12 36 M8 C8ADI16  80 70 36 16 36 M8
C5ADI16  50 60 32 16 36 M8 C8ADI20  80 70 40 20 36 M10
C5ADI20  50 75 49 20 55 M12 C8ADI25  80 80 51 25 54 M12
C5ADI25  50 85 60 25 60 M12 C8ADI32  80 110 86 32 68 M12
C5ADI32  50 100 76 32 68 M12 C8ADI40  80 115 86 40 98 M12
C6ADI12  60 65 36 12 36 M8 C8ADI50  80 115 86 50 98 M12
C6ADI16  60 65 36 16 36 M8

Tooling Systems C-TBK-R/L Adapters for parting and grooving blades L
B1

B1 f1 øD
12
L

Cat. No. Stock øD Dimensions (mm)
f1 øD f1 L B1
C6TBK-32L  63 32.0 138 32
C6TBK-32R  63 32.0 138 32

 : Stocked in Japan

Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
12–64
