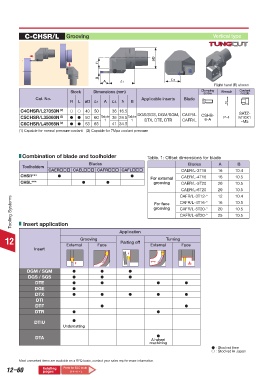

Page 968 - Tungaloy Catalog

C-CHSR/L Grooving Vertical type

øD
f1

B L3
A L1
Right hand (R) shown
Stock Dimensions (mm) Clamping Wrench Coolant
screw
nozzle
Cat. No. Applicable inserts Blade
R L øD L1 A L3 f1 B
C4CHSR/L27050N (2)   40 50 36 16.5 SATZ-
C5CHSR/L35060N (2)   50 60 Table 36 24.5 Table DGS/SGS, DGM/SGM, CAER/L CSHB- P-4 M10X1
6-A
DTX, DTE, DTR
CAFR/L
1
1
C6CHSR/L45065N (2)   63 65 41 34.5 -M5
(1) Capable for normal pressure coolant (2) Capable for 7Mpa coolant pressure

Combination of blade and toolholder Table. 1: Offset dimensions for blade

Blades Blades A B
Toolholders
CAERooo CAELooo CAFRooo CAFLooo CAER/L-3T16 16 10.4
CHSR***   For external CAER/L-4T16 16 10.5
CHSL***   grooving CAER/L-5T20 20 10.5
CAER/L-6T20 20 10.5
CAFR/L-3T12-*
12
10.4
Tooling Systems grooving CAFR/L-4T16-* 16 10.5
For face
CAFR/L-5T20-*
20
10.5
10.5
CAFR/L-6T20-*
25
Insert application
Application
12 External Grooving Face Parting off External Turning Face
Insert

DGM / SGM   
DGS / SGS   
DTE    
DGE 
DTX     
DTI
DTF  
DTR  
DTIU 
Undercutting

DTA Al wheel
machining
 : Stocked item
 : Stocked in Japan
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
