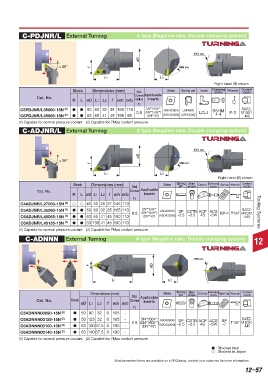

Page 965 - Tungaloy Catalog

C-PDJNR/L External Turning A type (Negative rake, Double clamping system)

MIN ød1
øD
≤ 28° f MIN ød2

L1 L2
Right hand (R) shown
Stock Dimensions (mm) Std. Shim Spring pin Lever Clamping Wrench Coolant
screw
nozzle
Corner Applicable
Cat. No.
R L øD L1 L2 f ød1 ød2 radius inserts
rε
C5PDJNR/L35060-15N (2)   50 60 32 35 165 110 0.8 (DN**1506**) ASD423(04) LSP4(04) LCL4 SSHM P-3 M10X1
SATZ-
DN**1504**
DN**1504**
C6PDJNR/L45065-15N (2)   63 65 41 45 195 95 (DN**43*) (ASD432(06)) (LSP4S(06)) 4-4 -M5
(DN**43*)
(1) Capable for normal pressure coolant (2) Capable for 7Mpa coolant pressure
C-ADJNR/L External Turning A type (Negative rake, Double clamping system)

MIN ød1
øD
≤ 28°
f MIN ød2

L1 L2
Right hand (R) shown
Stock Dimensions (mm) Shim Spring Shim Clamp Clamping Spring Wrench Coolant
Std. pin screw screw nozzle
Cat. No. Corner Applicable
R L øD L1 L2 f ød1 ød2 inserts
rε
C4ADJNR/L27050-15N (2)   40 50 25 27 145 110
DN**1504**
SATZ-
C5ADJNR/L35060-15N (2)   50 60 32 35 165 110 0.8 DN**1504** ASD423(04) SP CSTB ACP ACS BP-7 T15F M10X1 Tooling Systems
(DN**1506**)
C6ADJNR/L45065-15N (2)   63 65 41 45 190 110 (DN**43*) (ASD432(06)) -2.5 -3.5 4S -5W -M5
(DN**43*)
C6ADJNR/L45135-15N (2)   63 135 41 45 190 110
(1) Capable for normal pressure coolant (2) Capable for 7Mpa coolant pressure
C-ADNNN External Turning A type (Negative rake, Double clamping system) 12

MIN ød1
øD
f

L1 L2

Dimensions (mm) Shim Spring Shim Clamp Clamping Spring Wrench Coolant
pin
nozzle
screw
Std. Applicable screw
Cat. No. Stock Corner inserts
øD L1 L2 f ød1 ød2
rε
C5ADNNN00090-15N (2)  50 90 32 0 165 -
C5ADNNN00125-15N (2)  50 125 32 0 165 - DN**1504** BP SATZ-
DN**1504** ASD423(06) SP CSTB ACP ACS
0.8 (DN**1506**) T15F M10X1
C6ADNNN00100-15N (2)  63 100 37.5 0 190 - (DN**43*) (ASD432(04)) -2.5 -3.5 4S -5W -7 -M5
(DN**43*)
C6ADNNN00140-15N (2)  63 140 37.5 0 190 -
(1) Capable for normal pressure coolant (2) Capable for 7Mpa coolant pressure
 : Stocked item
 : Stocked in Japan
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
12–57
