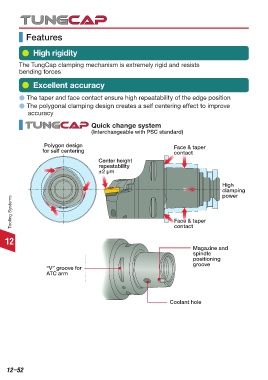

Features
High rigidity
The TungCap clamping mechanism is extremely rigid and resists
bending forces
Excellent accuracy
● The taper and face contact ensure high repeatability of the edge position
● The polygonal clamping design creates a self centering effect to improve
accuracy
Quick change system
(Interchangeable with PSC standard)
Polygon design Face & taper
for self centering contact
Center height
repeatability
±2 μm
High
clamping
power
Tooling Systems Face & taper
contact
12
Magazine and
spindle
positioning
groove
“V” groove for
ATC arm
Coolant hole
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
