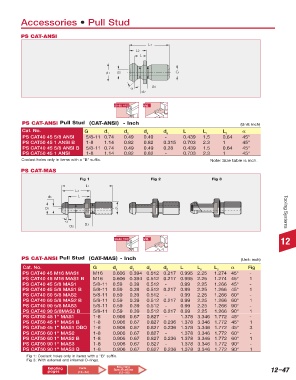

Page 955 - Tungaloy Catalog

Accessories • Pull Stud

PS CAT-ANSI

L1
L2
L

d1 d5 G

d4
α
d2

58-60 HRC N5

PS CAT-ANSI Pull Stud (CAT-ANSI) - Inch (Unit: inch)
Cat. No. G d 1 d 2 d 4 d 5 L L 1 L 2 α
PS CAT40 45 5/8 ANSI 5/8-11 0.74 0.49 0.49 - 0.439 1.5 0.64 45°
PS CAT50 45 1 ANSI B 1-8 1.14 0.82 0.82 0.315 0.703 2.3 1 45°
PS CAT40 45 5/8 ANSI B 5/8-11 0.74 0.49 0.49 0.28 0.439 1.5 0.64 45°
PS CAT50 45 1 ANSI 1-8 1.14 0.82 0.82 - 0.703 2.3 1 45°
Coolant holes only in items with a "B" suffix. Note: Size table is inch.

PS CAT-MAS
Fig 1 Fig 2 Fig 3
L1
L2
d5 L

D1 G Tooling Systems

α
D3
D2
12
58-60 HRC N5

PS CAT-ANSI Pull Stud (CAT-MAS) - Inch (Unit: inch)

Cat. No. G d 1 d 2 d 4 d 5 L L 1 L 2 α Fig
PS CAT40 45 M16 MAS1 M16 0.606 0.394 0.512 0.217 0.995 2.25 1.274 45° -
PS CAT40 45 M16 MAS1 B M16 0.606 0.394 0.512 0.217 0.995 2.25 1.274 45° 1
PS CAT40 45 5/8 MAS1 5/8-11 0.59 0.39 0.512 - 0.99 2.25 1.266 45° -
PS CAT40 45 5/8 MAS1 B 5/8-11 0.59 0.39 0.512 0.217 0.99 2.25 1.266 45° 1
PS CAT40 60 5/8 MAS2 5/8-11 0.59 0.39 0.512 - 0.99 2.25 1.266 60° -
PS CAT40 60 5/8 MAS2 B 5/8-11 0.59 0.39 0.512 0.217 0.99 2.25 1.266 60° 1
PS CAT40 90 5/8 MAS3 5/8-11 0.59 0.39 0.512 - 0.99 2.25 1.266 90° -
PS CAT40 90 5/8MAS3 B 5/8-11 0.59 0.39 0.512 0.217 0.99 2.25 1.266 90° 1
PS CAT50 45 1" MAS1 1-8 0.906 0.67 0.827 - 1.378 3.346 1.772 45° -
PS CAT50 45 1" MAS1 B 1-8 0.906 0.67 0.827 0.236 1.378 3.346 1.772 45° 1
PS CAT50 45 1" MAS1 OBO 1-8 0.906 0.67 0.827 0.236 1.378 3.346 1.772 45° 3
PS CAT50 60 1" MAS2 1-8 0.906 0.67 0.827 - 1.378 3.346 1.772 60° -
PS CAT50 60 1" MAS2 B 1-8 0.906 0.67 0.827 0.236 1.378 3.346 1.772 60° 1
PS CAT50 90 1" MAS3 1-8 0.906 0.67 0.827 - 1.378 3.346 1.772 90° -
PS CAT50 90 1" MAS3 B 1-8 0.906 0.67 0.827 0.236 1.378 3.346 1.772 90° 1
Fig 1: Coolant holes only in items with a "B" suffix.
Fig 3: With external and internal O-rings.
Mounting
Relating Parts Specifications 12–47
pages (12-54) (12-56)
