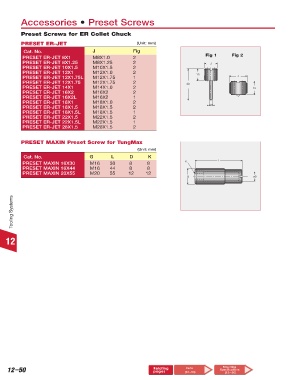

Page 958 - Tungaloy Catalog

Accessories • Preset Screws
Preset Screws for ER Collet Chuck

PRESET ER-JET (Unit: mm)
Cat. No. J Fig
PRESET ER-JET 8X1 M8X1.0 2 Fig 1 Fig 2
PRESET ER-JET 8X1.25 M8X1.25 2 J
PRESET ER-JET 10X1.5 M10X1.5 2
PRESET ER-JET 12X1 M12X1.0 2 15
PRESET ER-JET 12X1.75L M12X1.75 1 J
PRESET ER-JET 12X1.75 M12X1.75 2 40
PRESET ER-JET 14X1 M14X1.0 2 15
PRESET ER-JET 16X2 M16X2 2
PRESET ER-JET 16X2L M16X2 1
PRESET ER-JET 18X1 M18X1.0 2
PRESET ER-JET 18X1.5 M18X1.5 2 ø3
PRESET ER-JET 18X1.5L M18X1.5 1
PRESET ER-JET 22X1.5 M22X1.5 2
PRESET ER-JET 22X1.5L M22X1.5 1
PRESET ER-JET 28X1.5 M28X1.5 2

PRESET MAXIN Preset Screw for TungMax
(Unit: mm)
Cat. No.
G L D K
PRESET MAXIN 16X30 M16 30 8 8 K L
PRESET MAXIN 16X44 M16 44 8 8
PRESET MAXIN 20X55 M20 55 12 12
G øD

Tooling Systems

12

Mounting
12–50 Relating (12-54) Specifications
Parts
pages
(12-56)
