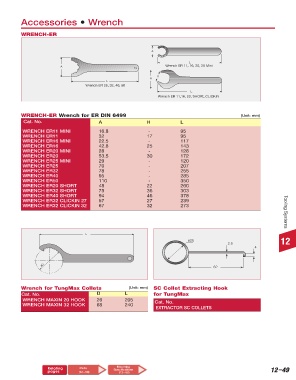

Page 957 - Tungaloy Catalog
P. 957
Accessories • Wrench A A
L
WRENCH-ER L
A
A
L
L
A Wrench ER 11, 16, 20, 25 Mini
H
A
L H
A
Wrench ER 25, 32, 40, 50
L
Wrench ER 11,16, 20, SHORt, CLICKIN
L
A
L
WRENCH-ER Wrench for ER DIN 6499 (Unit: mm)
Cat. No. A H L
WRENCH ER11 MINI H 16.8 - 95
A
WRENCH ER11 32 17 95
WRENCH ER16 MINI 22.5 - 117
WRENCH ER16 42.8 25 143
L
WRENCH ER20 MINI 28 - 128
WRENCH ER20 53.5 30 172
WRENCH ER25 MINI 29 - 120
WRENCH ER25 70 - 207
WRENCH ER32 78 - 255
WRENCH ER40 95 - 285
WRENCH ER50 110 - 350
WRENCH ER20 SHORT 48 22 260
WRENCH ER32 SHORT 75 36 303
WRENCH ER40 SHORT 94 46 378
WRENCH ER32 CLICKIN 27 57 27 239
WRENCH ER32 CLICKIN 32 67 32 273 Tooling Systems
L
ø25 12
ø25 2.5
2.5
4 4
øD 62 62
Wrench for TungMax Collets (Unit: mm) SC Collet Extracting Hook
D L for TungMax
Cat. No.
WRENCH MAXIN 20 HOOK 26 205 Cat. No.
WRENCH MAXIN 32 HOOK 68 240
EXTRACTOR SC COLLETS
Mounting
Relating Parts Specifications 12–49
pages (12-54) (12-56)
