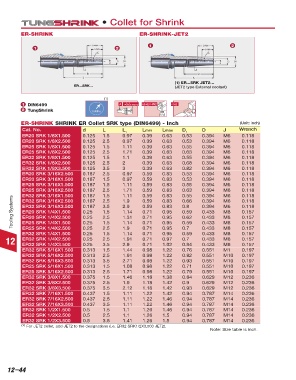

Page 952 - Tungaloy Catalog

• Collet for Shrink

ER-SHRINK ER-SHRINK-JET2

1 2
1 2

(1) ER...SRK JET2...
ER...SRK... (JET2 type External coolant)

(1)
1 DIN6499 A ➚ A 0.00012 58-60 HRC N5
2 TungShrink 10MPa

ER-SHRINK SHRINK ER Collet SRK type (DIN6499) - Inch (Unit: inch)
Cat. No. d L L 1 Lmin Lmax D 1 D J Wrench
ER20 SRK 1/8X1.500 0.125 1.5 0.97 0.39 0.63 0.53 0.394 M6 0.118
ER20 SRK 1/8X2.500 0.125 2.5 0.97 0.39 0.63 0.53 0.394 M6 0.118
ER25 SRK 1/8X1.500 0.125 1.5 1.11 0.39 0.63 0.55 0.394 M6 0.118
ER25 SRK 1/8X2.500 0.125 2.5 1.71 0.39 0.63 0.63 0.394 M6 0.118
ER32 SRK 1/8X1.500 0.125 1.5 1.1 0.39 0.63 0.55 0.394 M6 0.118
ER32 SRK 1/8X2.500 0.125 2.5 2 0.39 0.63 0.68 0.394 M6 0.118
ER32 SRK 1/8X3.500 0.125 3.5 3 0.39 0.63 0.82 0.394 M6 0.118
ER20 SRK 3/16X2.500 0.187 2.5 0.97 0.59 0.83 0.53 0.394 M6 0.118
ER20 SRK 3/16X1.500 0.187 1.5 0.97 0.59 0.83 0.53 0.394 M6 0.118
ER25 SRK 3/16X1.500 0.187 1.5 1.11 0.59 0.83 0.55 0.394 M6 0.118
ER25 SRK 3/16X2.500 0.187 2.5 1.71 0.59 0.83 0.63 0.394 M6 0.118
ER32 SRK 3/16X1.500 0.187 1.5 1.11 0.59 0.83 0.55 0.394 M6 0.118
Tooling Systems ER32 SRK 3/16X3.500 0.187 3.5 2.9 0.59 0.83 0.8 0.394 M6 0.118
2.5
0.187
0.118
M6
0.83
0.66
0.59
0.394
1.9
ER32 SRK 3/16X2.500
0.433
0.25
0.59
0.95
1.5
0.157
1.14
ER20 SRK 1/4X1.500
M8
0.71
0.95
0.71
1.31
2.5
ER20 SRK 1/4X2.500
0.157
0.433
M8
0.25
0.62
0.157
M8
0.71
0.59
0.95
ER25 SRK 1/4X1.500
0.433
1.14
0.25
1.5
ER25 SRK 1/4X2.500
0.95
0.25
M8
0.157
0.59
0.433
ER32 SRK 1/4X1.500 0.25 2.5 1.9 0.71 0.95 0.7 0.433 M8 0.157
0.71
1.14
1.5
12 ER32 SRK 1/4X2.500 0.25 2.5 1.91 0.71 0.97 0.7 0.433 M8 0.157
0.157
0.84
ER32 SRK 1/4X3.500
M8
0.433
2.9
1.02
0.71
0.25
3.5
ER32 SRK 5/16X1.500 0.313 1.5 1.44 0.98 1.22 0.76 0.551 M1 0.197
ER32 SRK 5/16X2.500 0.313 2.5 1.91 0.98 1.22 0.82 0.551 M10 0.197
ER32 SRK 5/16X3.500 0.313 3.5 2.71 0.98 1.22 0.93 0.551 M10 0.197
ER25 SRK 5/16X1.500 0.313 1.5 1.08 0.98 1.22 0.71 0.551 M10 0.197
ER25 SRK 5/16X2.500 0.313 2.5 1.71 0.98 1.22 0.79 0.551 M10 0.197
ER32 SRK 3/8X1.500 0.375 1.5 1.46 1.18 1.38 0.84 0.629 M12 0.236
ER32 SRK 3/8X2.500 0.375 2.5 1.9 1.18 1.42 0.9 0.629 M12 0.236
ER32 SRK 3/8X3.500 0.375 3.5 2.12 1.18 1.42 0.93 0.629 M12 0.236
ER32 SRK 7/16X1.500 0.437 1.5 1.11 1.22 1.42 0.94 0.787 M14 0.236
ER32 SRK 7/16X2.500 0.437 2.5 1.11 1.22 1.46 0.94 0.787 M14 0.236
ER32 SRK 7/16X3.500 0.437 3.5 1.11 1.22 1.46 0.94 0.787 M14 0.236
ER32 SRK 1/2X1.500 0.5 1.5 1.1 1.26 1.46 0.94 0.787 M14 0.236
ER32 SRK 1/2X2.500 0.5 2.5 1.1 1.26 1.5 0.94 0.787 M14 0.236
ER32 SRK 1/2X3.500 0.5 3.5 1.41 1.26 1.5 0.94 0.787 M14 0.236
(1) For JET2 collet, add JET2 to the designations (i.e. ER32 SRK1/2X3,500 JET2).
Note: Size table is inch.
12–44
