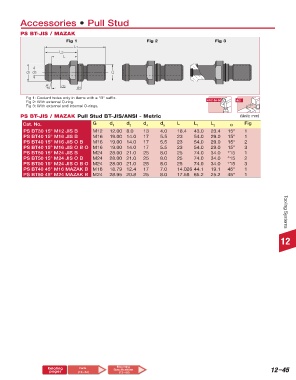

Page 953 - Tungaloy Catalog

Accessories • Pull Stud
PS BT-JIS / MAZAK
Fig 1 Fig 2 Fig 3
L1
L2
L

d1 d5 G

α
d2 d4
Fig 1: Coolant holes only in items with a "B" suffix. HRC 58-60
Fig 2: With external O-ring. N5
Fig 3: With external and internal O-rings.

PS BT-JIS / MAZAK Pull Stud BT-JIS/ANSI - Metric (Unit: mm)
Cat. No. G d 1 d 2 d 4 d 5 L L 1 L 2 α Fig
PS BT30 15° M12 JIS B M12 12.00 8.0 13 4.0 18.4 43.0 23.4 15° 1
PS BT40 15° M16 JIS B M16 19.00 14.0 17 5.5 23 54.0 29.0 15° 1
PS BT40 15° M16 JIS O B M16 19.00 14.0 17 5.5 23 54.0 29.0 15° 2
PS BT40 15° M16 JIS O B O M16 19.00 14.0 17 5.5 23 54.0 29.0 15° 3
PS BT50 15° M24 JIS B M24 28.00 21.0 25 8.0 25 74.0 34.0 °15 1
PS BT50 15° M24 JIS O B M24 28.00 21.0 25 8.0 25 74.0 34.0 °15 2
PS BT50 15° M24 JIS O B O M24 28.00 21.0 25 8.0 25 74.0 34.0 °15 3
PS BT40 45° M16 MAZAK B M16 18.79 12.4 17 7.0 14.026 44.1 19.1 45° 1
PS BT50 45° M24 MAZAK B M24 28.95 20.8 25 8.0 17.58 65.2 25.2 45° 1

Tooling Systems
12

 : Stocked items.

Mounting
Relating Parts Specifications 12–45
pages (12-54) (12-56)
