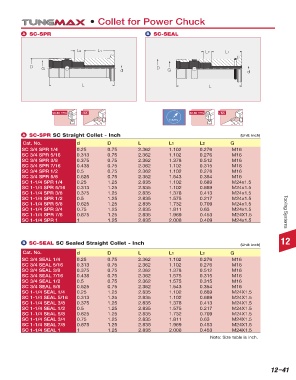

Page 949 - Tungaloy Catalog

• Collet for Power Chuck

A SC-SPR B SC-SEAL

L2 L1 L2 L1

D G d D G d

L L

58-60 HRC N5 58-60 HRC N5
10MPa

A SC-SPR SC Straight Collet - Inch (Unit: inch)
Cat. No. d D L L1 L2 G
SC 3/4 SPR 1/4 0.25 0.75 2.362 1.102 0.276 M16
SC 3/4 SPR 5/16 0.313 0.75 2.362 1.102 0.276 M16
SC 3/4 SPR 3/8 0.375 0.75 2.362 1.378 0.512 M16
SC 3/4 SPR 7/16 0.438 0.75 2.362 1.102 0.315 M16
SC 3/4 SPR 1/2 0.5 0.75 2.362 1.102 0.276 M16
SC 3/4 SPR 5/8 0.625 0.75 2.362 1.543 0.354 M16
SC 1-1/4 SPR 1/4 0.25 1.25 2.835 1.102 0.689 M24x1.5
SC 1-1/4 SPR 5/16 0.313 1.25 2.835 1.102 0.689 M24x1.5
SC 1-1/4 SPR 3/8 0.375 1.25 2.835 1.378 0.413 M24x1.5
SC 1-1/4 SPR 1/2 0.5 1.25 2.835 1.575 0.217 M24x1.5
SC 1-1/4 SPR 5/8 0.625 1.25 2.835 1.732 0.709 M24x1.5
SC 1-1/4 SPR 3/4 0.75 1.25 2.835 1.811 0.63 M24x1.5
SC 1-1/4 SPR 7/8 0.875 1.25 2.835 1.969 0.453 M24X1.5 Tooling Systems
SC 1-1/4 SPR 1 1 1.25 2.835 2.008 0.409 M24x1.5

B SC-SEAL SC Sealed Straight Collet - Inch (Unit: inch) 12

Cat. No. d D L L1 L2 G
SC 3/4 SEAL 1/4 0.25 0.75 2.362 1.102 0.276 M16
SC 3/4 SEAL 5/16 0.313 0.75 2.362 1.102 0.276 M16
SC 3/4 SEAL 3/8 0.375 0.75 2.362 1.378 0.512 M16
SC 3/4 SEAL 7/16 0.438 0.75 2.362 1.575 0.315 M16
SC 3/4 SEAL 1/2 0.5 0.75 2.362 1.575 0.315 M16
SC 3/4 SEAL 5/8 0.625 0.75 2.362 1.543 0.354 M16
SC 1-1/4 SEAL 1/4 0.25 1.25 2.835 1.102 0.689 M24X1.5
SC 1-1/4 SEAL 5/16 0.313 1.25 2.835 1.102 0.689 M24X1.5
SC 1-1/4 SEAL 3/8 0.375 1.25 2.835 1.378 0.413 M24X1.5
SC 1-1/4 SEAL 1/2 0.5 1.25 2.835 1.575 0.217 M24X1.5
SC 1-1/4 SEAL 5/8 0.625 1.25 2.835 1.732 0.709 M24X1.5
SC 1-1/4 SEAL 3/4 0.75 1.25 2.835 1.811 0.63 M24X1.5
SC 1-1/4 SEAL 7/8 0.875 1.25 2.835 1.969 0.453 M24X1.5
SC 1-1/4 SEAL 1 1 1.25 2.835 2.008 0.453 M24X1.5
Note: Size table is inch.

12–41
