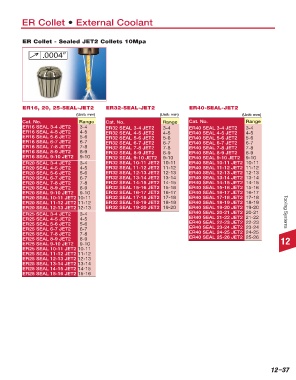

Page 945 - Tungaloy Catalog
P. 945
ER Collet • External Coolant
ER Collet - Sealed JET2 Collets 10Mpa
.0004’’
↑
ER16, 20, 25-SEAL-JET2 ER32-SEAL-JET2 ER40-SEAL-JET2
(Unit: mm) (Unit: mm) (Unit: mm)
Cat. No. Range Cat. No. Range Cat. No. Range
ER16 SEAL 3-4 JET2 3-4 ER32 SEAL 3-4 JET2 3-4 ER40 SEAL 3-4 JET2 3-4
ER16 SEAL 4-5 JET2 4-5 ER32 SEAL 4-5 JET2 4-5 ER40 SEAL 4-5 JET2 4-5
ER16 SEAL 5-6 JET2 5-6 ER32 SEAL 5-6 JET2 5-6 ER40 SEAL 5-6 JET2 5-6
ER16 SEAL 6-7 JET2 6-7 ER32 SEAL 6-7 JET2 6-7 ER40 SEAL 6-7 JET2 6-7
ER16 SEAL 7-8 JET2 7-8 ER32 SEAL 7-8 JET2 7-8 ER40 SEAL 7-8 JET2 7-8
ER16 SEAL 8-9 JET2 8-9 ER32 SEAL 8-9 JET2 8-9 ER40 SEAL 8-9 JET2 8-9
ER16 SEAL 9-10 JET2 9-10 ER32 SEAL 9-10 JET2 9-10 ER40 SEAL 9-10 JET2 9-10
ER20 SEAL 3-4 JET2 3-4 ER32 SEAL 10-11 JET2 10-11 ER40 SEAL 10-11 JET2 10-11
ER20 SEAL 4-5 JET2 4-5 ER32 SEAL 11-12 JET2 11-12 ER40 SEAL 11-12 JET2 11-12
ER20 SEAL 5-6 JET2 5-6 ER32 SEAL 12-13 JET2 12-13 ER40 SEAL 12-13 JET2 12-13
ER20 SEAL 6-7 JET2 6-7 ER32 SEAL 13-14 JET2 13-14 ER40 SEAL 13-14 JET2 13-14
ER20 SEAL 7-8 JET2 7-8 ER32 SEAL 14-15 JET2 14-15 ER40 SEAL 14-15 JET2 14-15
ER20 SEAL 8-9 JET2 8-9 ER32 SEAL 15-16 JET2 15-16 ER40 SEAL 15-16 JET2 15-16
ER20 SEAL 9-10 JET2 9-10 ER32 SEAL 16-17 JET2 16-17 ER40 SEAL 16-17 JET2 16-17
ER20 SEAL 10-11 JET2 10-11 ER32 SEAL 17-18 JET2 17-18 ER40 SEAL 17-18 JET2 17-18
ER20 SEAL 11-12 JET2 11-12 ER32 SEAL 18-19 JET2 18-19 ER40 SEAL 18-19 JET2 18-19
ER20 SEAL 12-13 JET2 12-13 ER32 SEAL 19-20 JET2 19-20 ER40 SEAL 19-20 JET2 19-20
ER25 SEAL 3-4 JET2 3-4 ER40 SEAL 20-21 JET2 20-21 Tooling Systems
ER25 SEAL 4-5 JET2 4-5 ER40 SEAL 21-22 JET2 21-22
ER25 SEAL 5-6 JET2 5-6 ER40 SEAL 22-23 JET2 22-23
ER25 SEAL 6-7 JET2 6-7 ER40 SEAL 23-24 JET2 23-24
ER25 SEAL 7-8 JET2 7-8 ER40 SEAL 24-25 JET2 24-25
ER25 SEAL 8-9 JET2 8-9 ER40 SEAL 25-26 JET2 25-26 12
ER25 SEAL 9-10 JET2 9-10
ER25 SEAL 10-11 JET2 10-11
ER25 SEAL 11-12 JET2 11-12
ER25 SEAL 12-13 JET2 12-13
ER25 SEAL 13-14 JET2 13-14
ER25 SEAL 14-15 JET2 14-15
ER25 SEAL 15-16 JET2 15-16
12–37
