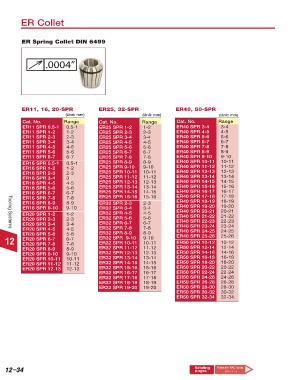

Page 942 - Tungaloy Catalog

ER Collet

ER Spring Collet DIN 6499

.0004’’
↑

ER11, 16, 20-SPR ER25, 32-SPR ER40, 50-SPR
(Unit: mm) (Unit: mm) (Unit: mm)
Cat. No. Range Cat. No. Range Cat. No. Range
ER11 SPR 0.5-1 0.5-1 ER25 SPR 1-2 1-2 ER40 SPR 3-4 3-4
ER11 SPR 1-2 1-2 ER25 SPR 2-3 2-3 ER40 SPR 4-5 4-5
ER11 SPR 2-3 2-3 ER25 SPR 3-4 3-4 ER40 SPR 5-6 5-6
ER11 SPR 3-4 3-4 ER25 SPR 4-5 4-5 ER40 SPR 6-7 6-7
ER11 SPR 4-5 4-5 ER25 SPR 5-6 5-6 ER40 SPR 7-8 7-8
ER11 SPR 5-6 5-6 ER25 SPR 6-7 6-7 ER40 SPR 8-9 8-9
ER11 SPR 6-7 6-7 ER25 SPR 7-8 7-8 ER40 SPR 9-10 9-10
ER16 SPR 0.5-1 0.5-1 ER25 SPR 8-9 8-9 ER40 SPR 10-11 10-11
ER16 SPR 1-2 1-2 ER25 SPR 9-10 9-10 ER40 SPR 11-12 11-12
ER16 SPR 2-3 2-3 ER25 SPR 10-11 10-11 ER40 SPR 12-13 12-13
ER16 SPR 3-4 3 ER25 SPR 11-12 11-12 ER40 SPR 13-14 13-14
ER16 SPR 4-5 4-5 ER25 SPR 12-13 12-13 ER40 SPR 14-15 14-15
ER16 SPR 5-6 5-6 ER25 SPR 13-14 13-14 ER40 SPR 15-16 15-16
ER16 SPR 6-7 6-7 ER25 SPR 14-15 14-15 ER40 SPR 16-17 16-17
ER16 SPR 7-8 7-8 ER25 SPR 15-16 15-16 ER40 SPR 17-18 17-18
ER16 SPR 8-9 8-9 ER32 SPR 2-3 2-3 ER40 SPR 18-19 18-19
ER16 SPR 9-10 9-10 ER32 SPR 3-4 3-4 ER40 SPR 19-20 19-20
ER20 SPR 1-2 1-2 ER32 SPR 4-5 4-5 ER40 SPR 20-21 20-21
21-22
ER40 SPR 21-22
ER20 SPR 2-3 2-3 ER32 SPR 5-6 5-6 ER40 SPR 22-23 22-23
ER20 SPR 3-4 3-4 ER32 SPR 6-7 6-7 ER40 SPR 23-24 23-24
ER20 SPR 4-5 4-5 ER32 SPR 7-8 7-8 ER40 SPR 24-25 24-25
Tooling Systems
ER20 SPR 5-6 5-6 ER32 SPR 8-9 8-9 ER40 SPR 25-26 25-26
12 ER20 SPR 6-7 6-7 ER32 SPR 9-10 9-10 ER50 SPR 10-12 10-12
10-11
ER32 SPR 10-11
7-8
ER20 SPR 7-8
ER20 SPR 8-9 8-9 ER32 SPR 11-12 11-12 ER50 SPR 12-14 12-14
ER20 SPR 9-10 9-10 ER32 SPR 12-13 12-13 ER50 SPR 14-16 14-16
ER20 SPR 10-11 10-11 ER32 SPR 13-14 13-14 ER50 SPR 16-18 16-18
ER20 SPR 11-12 11-12 ER32 SPR 14-15 14-15 ER50 SPR 18-20 18-20
ER20 SPR 12-13 12-13 ER32 SPR 15-16 15-16 ER50 SPR 20-22 20-22
ER32 SPR 16-17 16-17 ER50 SPR 22-24 22-24
ER32 SPR 17-18 17-18 ER50 SPR 24-26 24-26
ER32 SPR 18-19 18-19 ER50 SPR 26-28 26-28
ER32 SPR 19-20 19-20 ER50 SPR 28-30 28-30
ER50 SPR 30-32 30-32
ER50 SPR 32-34 32-34

Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
12–34 Relating Parts for TAC tools
