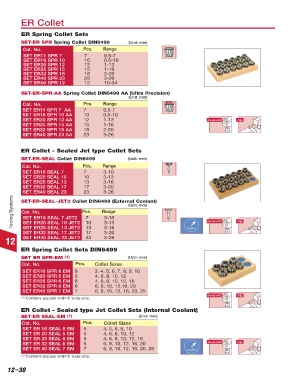

Page 946 - Tungaloy Catalog

ER Collet
ER Spring Collet Sets

SET-ER SPR Spring Collet DIN6499 (Unit: mm)
Cat. No. Pcs. Range
SET ER11 SPR 7 7 0.5-7
SET ER16 SPR 10 10 0.5-10
SET ER20 SPR 12 12 1-13
SET ER25 SPR 15 15 1-16
SET ER32 SPR 18 18 2-20
SET ER40 SPR 23 23 3-26
SET ER50 SPR 12 12 10-34

SET-ER-SPR-AA Spring Collet DIN6499 AA (Ultra Precision)
(Unit: mm)
Cat. No. Pcs. Range ‘AA’
SET ER11 SPR 7 AA 7 0.5-7
SET ER16 SPR 10 AA 10 0.5-10
SET ER20 SPR 12 AA 12 1-13 46-48 HRC N5
SET ER25 SPR 15 AA 15 1-16
SET ER32 SPR 18 AA 18 2-20
SET ER40 SPR 23 AA 23 3-26

ER Collet - Sealed Jet type Collet Sets

SET-ER-SEAL Collet DIN6499 (Unit: mm)
Cat. No. Pcs. Range
SET ER16 SEAL 7 7 3-10
SET ER20 SEAL 10 10 3-13
SET ER25 SEAL 13 13 3-16
SET ER32 SEAL 17 17 3-20
SET ER40 SEAL 23 23 3-26
Tooling Systems Cat. No. Pcs. Range (Unit: mm) 46-48 HRC N5
SET-ER-SEAL-JET2 Collet DIN6499 (External Coolant)

SET ER16 SEAL 7 JET2
3-10
7
SET ER20 SEAL 10 JET2 10
3-16
SET ER25 SEAL 13 JET2 13
3-20
SET ER32 SEAL 17 JET2 17 3-13 10MPa
12 SET ER40 SEAL 23 JET2 23 3-26
ER Spring Collet Sets DIN6499
SET ER SPR-EM (1) (Unit: mm)
Cat. No. Pcs. Collet Sizes
SET ER16 SPR 8 EM 8 3, 4, 5, 6, 7, 8, 9, 10
SET ER20 SPR 5 EM 5 4, 6, 8, 10, 12
SET ER25 SPR 6 EM 6 4, 6, 8, 10, 12, 16
SET ER32 SPR 6 EM 6 6, 8, 10, 12,16, 20
SET ER40 SPR 7 EM 7 6, 8, 10, 12, 16, 20, 25
46-48 HRC N5
(1) Contains popular endmill sizes only.
ER Collet - Sealed type Jet Collet Sets (Internal Coolant)
SET-ER SEAL-EM (1) (Unit: mm)
Cat. No. Pcs. Collet Sizes
SET ER 16 SEAL 5 EM 5 4, 5, 6, 8, 10
SET ER 20 SEAL 5 EM 5 4, 6, 8, 10, 12
SET ER 25 SEAL 6 EM 6 4, 6, 8, 10, 12, 16
SET ER 32 SEAL 6 EM 6 6, 8, 10, 12, 16, 20 46-48 HRC N5
SET ER 40 SEAL 7 EM 7 6, 8, 10, 12, 16, 20, 25 10MPa

(1) Contains popular endmill sizes only.

12–38
