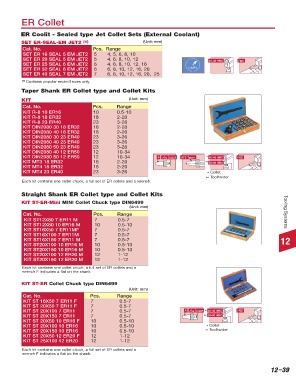

Page 947 - Tungaloy Catalog

ER Collet

ER Coolit - Sealed type Jet Collet Sets (External Coolant)
SET ER-SEAL-EM JET2 (1) (Unit: mm)
Cat. No. Pcs. Range
SET ER 16 SEAL 5 EM JET2 5 4, 5, 6, 8, 10
SET ER 20 SEAL 5 EM JET2 5 4, 6, 8, 10, 12 46-48 HRC N5
SET ER 25 SEAL 6 EM JET2 6 4, 6, 8, 10, 12, 16
SET ER 32 SEAL 6 EM JET2 6 6, 8, 10, 12, 16, 20 10MPa
SET ER 40 SEAL 7 EM JET2 7 6, 8, 10, 12, 16, 20, 25
(1) Contains popular endmill sizes only.
Taper Shank ER Collet type and Collet Kits
KIT (Unit: mm)
Cat. No. Pcs. Range
KIT R-8 10 ER16 10 0.5-10
KIT R-8 18 ER32 18 2-20
KIT R-8 23 ER40 23 3-26
KIT DIN2080 30 18 ER32 18 2-20
KIT DIN2080 40 18 ER32 18 2-20
KIT DIN2080 30 23 ER40 23 3-26
KIT DIN2080 40 23 ER40 23 3-26
KIT DIN2080 50 23 ER40 23 3-26
KIT DIN2080 40 12 ER50 12 10-34
KIT DIN2080 50 12 ER50 12 10-34 A ➚ A 0.005 AT3 Taper * 46-48 HRC N5
KIT MT3 18 ER32 18 2-20 ** 58-60 HRC
KIT MT4 18 ER32 18 2-20
KIT MT4 23 ER40 23 3-26 * Collet
** Toolholder
Each kit contains one collet chuck, a full set of ER collets and a wrench.

Straight Shank ER Collet type and Collet Kits
KIT ST-ER-Mini MINI Collet Chuck type DIN6499
(Unit: mm)
Cat. No. Pcs. Range Tooling Systems
KIT ST12X80 7 ER11 M 7 0.5-7
KIT ST12X80 10 ER16 M 10 0.5-10
KIT ST16X50 7 ER11MF 7 0.5-7
KIT ST16X100 7 ER11M 7 0.5-7
KIT ST16X150 7 ER11 M 7 0.5-7 12
KIT ST20X100 10 ER16 M 10 0.5-10
KIT ST20X150 10 ER16 M 10 0.5-10
KIT ST20X100 12 ER20 M 12 1-12
KIT ST20X150 12 ER20 M 12 1-12
Each kit contains one collet chuck, a full set of ER collets and a
wrench F indicates a flat on the shank.

KIT ST-ER Collet Chuck type DIN6499
(Unit: mm)
Cat. No. Pcs. Range
KIT ST 16X50 7 ER11 F 7 0.5-7
KIT ST 20X50 7 ER11 F 7 0.5-7
KIT ST 20X100 7 ER11 7 0.5-7 A ➚ A 0.005 * 46-48 HRC N5
KIT ST 20X150 7 ER11 7 0.5-7 ** 58-60 HRC
KIT ST 20X50 10 ER16 F 10 0.5-10
KIT ST 20X100 10 ER16 10 0.5-10 * Collet
KIT ST 20X150 10 ER16 10 0.5-10 ** Toolholder
KIT ST 20X50 12 ER20 F 12 1-12
KIT ST 25X100 12 ER20 12 1-12

Each kit contains one collet chuck, a full set of ER collets and a
wrench F indicates a flat on the shank.

12–39
