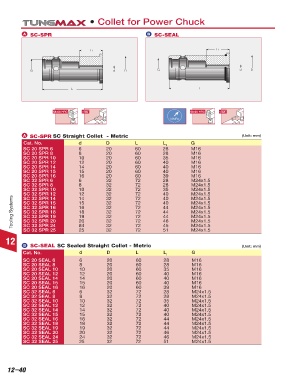

Page 948 - Tungaloy Catalog

• Collet for Power Chuck

A SC-SPR B SC-SEAL

L1 L1

G d D G d D

L L

58-60 HRC N5 58-60 HRC N5
10MPa

A SC-SPR SC Straight Collet - Metric (Unit: mm)
Cat. No. d D L L G
1
SC 20 SPR 6 6 20 60 28 M16
SC 20 SPR 8 8 20 60 28 M16
SC 20 SPR 10 10 20 60 35 M16
SC 20 SPR 12 12 20 60 40 M16
SC 20 SPR 14 14 20 60 40 M16
SC 20 SPR 15 15 20 60 40 M16
SC 20 SPR 16 16 20 60 39 M16
SC 32 SPR 6 6 32 72 28 M24x1.5
SC 32 SPR 8 8 32 72 28 M24x1.5
SC 32 SPR 10 10 32 72 35 M24x1.5
SC 32 SPR 12 12 32 72 40 M24x1.5
Tooling Systems SC 32 SPR 16 16 32 72 44 M24x1.5
32
SC 32 SPR 14
M24x1.5
40
14
72
15
32
72
M24x1.5
SC 32 SPR 15
40
M24x1.5
32
18
44
SC 32 SPR 18
72
SC 32 SPR 19
44
32
19
72
M24x1.5
20
72
SC 32 SPR 20
46
32
M24x1.5
SC 32 SPR 24
32
72
M24x1.5
SC 32 SPR 25 84 32 72 45 M24x1.5
51
25
12
B SC-SEAL SC Sealed Straight Collet - Metric (Unit: mm)
Cat. No. d D L L G
1
SC 20 SEAL 6 6 20 60 28 M16
SC 20 SEAL 8 8 20 60 28 M16
SC 20 SEAL 10 10 20 60 35 M16
SC 20 SEAL 12 12 20 60 40 M16
SC 20 SEAL 14 14 20 60 40 M16
SC 20 SEAL 15 15 20 60 40 M16
SC 20 SEAL 16 16 20 60 39 M16
SC 32 SEAL 6 6 32 72 28 M24x1.5
SC 32 SEAL 8 8 32 72 28 M24x1.5
SC 32 SEAL 10 10 32 72 35 M24x1.5
SC 32 SEAL 12 12 32 72 40 M24x1.5
SC 32 SEAL 14 14 32 72 40 M24x1.5
SC 32 SEAL 15 15 32 72 40 M24x1.5
SC 32 SEAL 16 16 32 72 44 M24x1.5
SC 32 SEAL 18 18 32 72 44 M24x1.5
SC 32 SEAL 19 19 32 72 44 M24x1.5
SC 32 SEAL 20 20 32 72 46 M24x1.5
SC 32 SEAL 24 24 32 72 46 M24x1.5
SC 32 SEAL 25 25 32 72 51 M24x1.5
12–40
