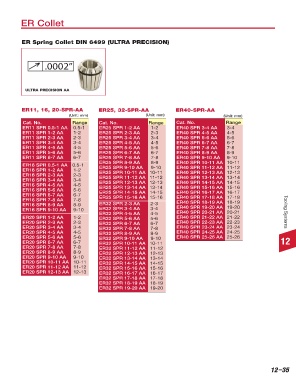

Page 943 - Tungaloy Catalog

ER Collet

ER Spring Collet DIN 6499 (ULTRA PRECISION)

↑ .0002’’

ULTRA PRECISION AA

ER11, 16, 20-SPR-AA ER25, 32-SPR-AA ER40-SPR-AA
(Unit: mm) (Unit: mm) (Unit: mm)
Cat. No. Range Cat. No. Range Cat. No. Range
ER11 SPR 0.5-1 AA 0.5-1 ER25 SPR 1-2 AA 1-2 ER40 SPR 3-4 AA 3-4
ER11 SPR 1-2 AA 1-2 ER25 SPR 2-3 AA 2-3 ER40 SPR 4-5 AA 4-5
ER11 SPR 2-3 AA 2-3 ER25 SPR 3-4 AA 3-4 ER40 SPR 5-6 AA 5-6
ER11 SPR 3-4 AA 3-4 ER25 SPR 4-5 AA 4-5 ER40 SPR 6-7 AA 6-7
ER11 SPR 4-5 AA 4-5 ER25 SPR 5-6 AA 5-6 ER40 SPR 7-8 AA 7-8
ER11 SPR 5-6 AA 5-6 ER25 SPR 6-7 AA 6-7 ER40 SPR 8-9 AA 8-9
ER11 SPR 6-7 AA 6-7 ER25 SPR 7-8 AA 7-8 ER40 SPR 9-10 AA 9-10
ER25 SPR 8-9 AA 8-9 ER40 SPR 10-11 AA 10-11
ER16 SPR 0.5-1 AA 0.5-1 ER25 SPR 9-10 AA 9-10 ER40 SPR 11-12 AA 11-12
ER16 SPR 1-2 AA 1-2 ER25 SPR 10-11 AA 10-11 ER40 SPR 12-13 AA 12-13
ER16 SPR 2-3 AA 2-3 ER25 SPR 11-12 AA 11-12 ER40 SPR 13-14 AA 13-14
ER16 SPR 3-4 AA 3-4 ER25 SPR 12-13 AA 12-13 ER40 SPR 14-15 AA 14-15
ER16 SPR 4-5 AA 4-5 ER25 SPR 13-14 AA 13-14 ER40 SPR 15-16 AA 15-16
ER16 SPR 5-6 AA 5-6 ER25 SPR 14-15 AA 14-15 ER40 SPR 16-17 AA 16-17
ER16 SPR 6-7 AA 6-7 ER25 SPR 15-16 AA 15-16 ER40 SPR 17-18 AA 17-18
ER16 SPR 7-8 AA 7-8 ER40 SPR 18-19 AA 18-19
ER16 SPR 8-9 AA 8-9 ER32 SPR 2-3 AA 2-3 ER40 SPR 19-20 AA 19-20
ER16 SPR 9-10 AA 9-10 ER32 SPR 3-4 AA 3-4
ER32 SPR 4-5 AA 4-5 ER40 SPR 20-21 AA 20-21 Tooling Systems
ER20 SPR 1-2 AA 1-2 ER32 SPR 5-6 AA 5-6 ER40 SPR 21-22 AA 21-22
ER20 SPR 2-3 AA 2-3 ER32 SPR 6-7 AA 6-7 ER40 SPR 22-23 AA 22-23
ER20 SPR 3-4 AA 3-4 ER32 SPR 7-8 AA 7-8 ER40 SPR 23-24 AA 23-24
ER20 SPR 4-5 AA 4-5 ER32 SPR 8-9 AA 8-9 ER40 SPR 24-25 AA 24-25
ER20 SPR 5-6 AA 5-6 ER32 SPR 9-10 AA 9-10 ER40 SPR 25-26 AA 25-26
ER20 SPR 6-7 AA 6-7 ER32 SPR 10-11 AA 10-11 12
ER20 SPR 7-8 AA 7-8 ER32 SPR 11-12 AA 11-12
ER20 SPR 8-9 AA 8-9 ER32 SPR 12-13 AA 12-13
ER20 SPR 9-10 AA 9-10 ER32 SPR 13-14 AA 13-14
ER20 SPR 10-11 AA 10-11 ER32 SPR 14-15 AA 14-15
ER20 SPR 11-12 AA 11-12 ER32 SPR 15-16 AA 15-16
ER20 SPR 12-13 AA 12-13 ER32 SPR 16-17 AA 16-17
ER32 SPR 17-18 AA 17-18
ER32 SPR 18-19 AA 18-19
ER32 SPR 19-20 AA 19-20

12–35
