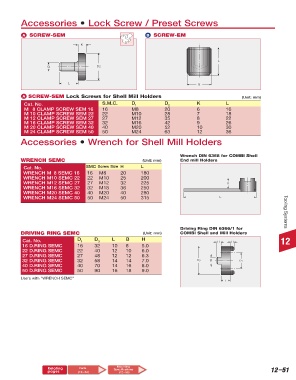

Page 959 - Tungaloy Catalog

Accessories • Lock Screw / Preset Screws

A SCREW-SEM B SCREW-EM
K

L
G D2

L G

A SCREW-SEM Lock Screws for Shell Mill Holders (Unit: mm)
Cat. No. S.M.C. D D K L
1
2
M 8 CLAMP SCREW SEM 16 16 M8 20 6 16
M 10 CLAMP SCREW SEM 22 22 M10 28 7 18
M 12 CLAMP SCREW SEM 27 27 M12 35 8 22
M 16 CLAMP SCREW SEM 32 32 M16 42 9 26
M 20 CLAMP SCREW SEM 40 40 M20 52 10 30
M 24 CLAMP SCREW SEM 50 50 M24 63 12 36
Accessories • Wrench for Shell Mill Holders

Wrench DIN 6368 for COMBI Shell
WRENCH SEMC (Unit: mm) End mill Holders
Cat. No. SMC H L
Screw Size
WRENCH M 8 SEMC 16 16 M8 20 180
WRENCH M10 SEMC 22 22 M10 25 200
WRENCH M12 SEMC 27 27 M12 32 225 H
WRENCH M16 SEMC 32 32 M18 36 250
WRENCH M20 SEMC 40 40 M20 40 280
WRENCH M24 SEMC 50 50 M24 50 315 L Tooling Systems

Driving Ring DIN 6366/1 for
DRIVING RING SEMC (Unit: mm) COMBI Shell and Mill Holders
Cat. No. D D L B H H H 12
1
3
16 D.RING SEMC 16 32 10 8 5.0
22 D.RING SEMC 22 40 12 10 6.0
27 D.RING SEMC 27 48 12 12 6.3
32 D.RING SEMC 32 58 14 14 7.0 D3 B D1
40 D.RING SEMC 40 70 14 16 8.0
50 D.RING SEMC 50 90 16 18 9.0
Use's with "WRENCH SEMC"
L

Mounting
Relating Parts Specifications 12–51
pages (12-54) (12-56)
