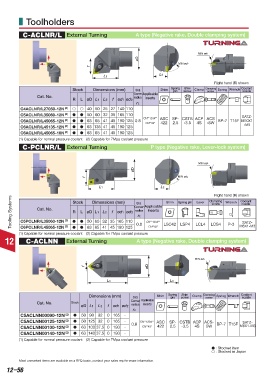

Page 964 - Tungaloy Catalog

Toolholders

C-ACLNR/L External Turning A type (Negative rake, Double clamping system)

MIN ød1
øD
MIN ød2
f
L2
L1
Right hand (R) shown
Shim
Stock Dimensions (mm) Std. Shim Spring screw Clamp Clamping Spring Wrench Coolant
pin
nozzle
screw
Corner Applicable
Cat. No. radius
R L øD L1 L2 f ød1 ød2 inserts
rε
C4ACLNR/L27050-12N (2)   40 50 25 27 140 110
C5ACLNR/L35060-12N (2)   50 60 32 35 165 110 SATZ-
C6ACLNR/L45065-12N (2)   63 65 41 45 190 125 0.8 CN**1204** ASC SP- CSTB ACP ACS BP-7 T15F M10X1
422
-5W
4S
-3.5
2.5
CN**43*
C6ACLNR/L45135-12N (2)   63 135 41 45 190 125 -M5
C6ACLNR/L45065-16N (2)   63 65 41 45 190 125
(1) Capable for normal pressure coolant (2) Capable for 7Mpa coolant pressure
C-PCLNR/L External Turning P type (Negative rake, Lever-lock system)
MIN ød1
øD
f MIN ød2
L1 L2
Right hand (R) shown
Tooling Systems C5PCLNR/L35060-12N (2)   50 60 32 35 165 110 Corner Applicable screw nozzle
Clamping
Coolant
Dimensions (mm)
Stock
Shim
Lever
Wrench
Spring pin
Std.
Cat. No.
inserts
radius
R
f
L øD L1 L2
ød1 ød2
rε
CN**1204**
SATZ-
0.8
C6PCLNR/L45065-12N (2)
 63 65 41 45 190 125

(1) Capable for normal pressure coolant (2) Capable for 7Mpa coolant pressure CN**43* LSC42 LSP4 LCL4 LCS4 P-3 M8X1-M3
12 C-ACLNN External Turning A type (Negative rake, Double clamping system)
MIN ød1
f øD
L1 L2
Shim
Dimensions (mm) Std. Shim Spring screw Clamp Clamping Spring Wrench Coolant
pin
nozzle
screw
Corner Applicable
Cat. No. Stock inserts
øD L1 L2 f ød1 ød2 radius
rε
C5ACLNN00090-12N (2)  50 90 32 0 165 -
C5ACLNN00125-12N (2)  50 125 32 0 165 - 0.8 CN**1204** ASC SP- CSTB ACP ACS- BP-7 T15F SATZ-
C6ACLNN00100-12N (2)  63 100 37.5 0 190 - CN**43* 422 2.5 -3.5 4S 5W M8X1-M3
C6ACLNN00140-12N (2)  63 140 37.5 0 190 -
(1) Capable for normal pressure coolant (2) Capable for 7Mpa coolant pressure
 : Stocked item
 : Stocked in Japan
Most unmarked items are available on a RFQ basis, contact your sales rep for more information.
12–56
