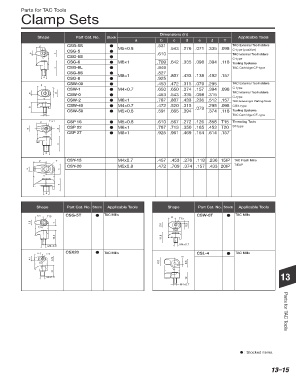

Page 999 - Tungaloy Catalog

Parts for TAC Tools
Clamp Sets
Dimensions (in)
Shape Part Cat. No. Stock Applicable Tools
a b c d e R T
R CSG-5S d .531 TAC External Toolholders
f CSG-5 M5×0.8 .543 .276 .071 .335 .098 C-type (positive)
e d d .610 TAC Internal Toolholders
c CSG-6S d C-type
CSG-6 d M6×1 .709 .642 .335 .098 .394 .118 Tooling Systems
CSG-6L .846 TAC Cartridge CP-type
b d
CSG-8S d .827
a CSG-8 d M8×1 .925 .807 .433 .138 .492 .157
CSW-00 d .453 .472 .315 .079 .295 TAC External Toolholders
R
CSW-1 d
f M4×0.7 .650 .650 .374 .157 .394 .098 C-type
e d TAC Internal Toolholders
CSW-0 d .453 .543 .335 .098 .315
c C-type
CSW-2 d M6×1 .787 .807 .433 .236 .512 .157 TAC Grooving & Parting Tools
CSW-40 d M4×0.7 .472 .520 .315 .295 .098 CGX-type
b .079
CSW-50 d M5×0.8 .591 .665 .394 .374 .118 Tooling Systems
a TAC Cartridge CE-type
R T or f CSP 16 d M5×0.8 .610 .567 .272 .126 .358 T15 Threading Tools
CSP 22 d M6×1 .787 .713 .350 .165 .453 T20 ST-type
e d
c CSP 27 d M8×1 .925 .961 .469 .154 .614 .157
b
a
T CSY-15 M4x0.7 .457 .453 .276 .118 .236 15IP TAC Flash Mills
CSY-20 M5x0.8 .472 .709 .374 .157 .433 20IP T/EXP
e d
c

b
a

Shape Part Cat. No. Stock Applicable Tools Shape Part Cat. No. Stock Applicable Tools

8.5 T15 CSG-5T d TAC Mills 8 CSW-0T d TAC Mills
T15
1.8 7 8.5
13.8 2.5
13.8
15.5 11.8
M4×0.7
M5×0.8
CSX20
11.5 T-20 d TAC Mills CSL-4 d TAC Mills
3
4.1 8.75
18.1 6.5 9.5
16
20
M6×1.0 13
12
M4×0.7 Parts for TAC Tools

d : Stocked items.

13–15
