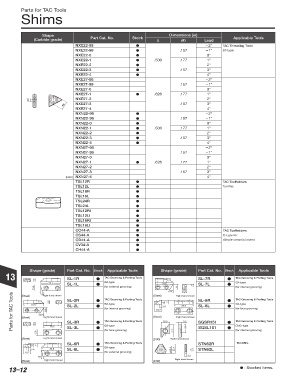

Page 996 - Tungaloy Catalog

Parts for TAC Tools
Shims
Shape Dimensions (in)

(Carbide grade) Part Cat. No. Stock a øb Lead Applicable Tools

NXE22-98 d -2° TAC Threading Tools
NXE22-99 d .157 -1° ST-type
NXE22-0 d 0°
NXE22-1 d .500 .177 1°
NXE22-2 d 2°
NXE22-3 d .157 3°
NXE22-4 d 4°
NXE27-98 -2°
NXE27-99 .157 -1°
NXE27-0 0°
NXE27-1 d .626 .177 1°
NXE27-2 2°
ød
øa NXE27-3 .157 3°
NXE27-4 4°
NXN22-98 d -2°
NXN22-99 d .157 -1°
NXN22-0 d 0°
NXN22-1 d .500 .177 1°
NXN22-2 d 2°
NXN22-3 d .157 3°
NXN22-4 d 4°
NXN27-98 -2°
NXN27-99 .157 -1°
NXN27-0 0°
NXN27-1 d .626 .177 1°
NXN27-2 2°
NXN27-3 .157 3°
(D30) NXN27-4 4°
TSL12R d TAC Toolholders
TSL12L d TurnTec
TSL16R d
TSL16L d
TSL24R d
TSL24L d
TSL12RI d
TSL12LI d
TSL16RI d
TSL16LI d
CC44-A d TAC Toolholders
CS44-A d C-type for
CD44-A d dimple ceramic inserts
CV34-A d
CH44-A d

Shape (grade) Part Cat. No. Stock Applicable Tools Shape (grade) Part Cat. No. Stock Applicable Tools
13 SL-1R d TAC Grooving & Parting Tools SL-7R d TAC Grooving & Parting Tools
5.5
32.5 SL-1L d GX-type 31.5 SL-7L d GX-type
10.8 (for external grooving) 11 3.8 (for internal grooving)
5
30° Right hand shown SL-8R d TAC Grooving & Parting Tools
7
Parts for TAC Tools (Steel) 31.5 30° Right hand shown SL-2L d GX-type (Steel) 3.8 5 7 Right hand shown SL-8L d GX-type
15°
Right hand shown
(Steel)
(Steel)
TAC Grooving & Parting Tools
SL-2R
d
5.5
28.5
(for face grooving)
(for internal grooving)
10.7
8.8
TAC Grooving & Parting Tools
TAC Grooving & Parting Tools
3.2
SL-3R
10.6
SGSR151
d
d
(for face grooving)
(for internal grooving)
10.8 5.5 28.5 SL-3L d GX-type 17.7 ø5.4 SGSL151 d CNG-type
(Steel) Right hand shown (D30) Right hand shown
SL-6R d TAC Grooving & Parting Tools STN62R TAC Mills
5 7 GX-type
3.8 32.5 SL-6L d ø18.4 23.1 3.5 STN62L
10.7 (for external grooving)
15° 3.2
(Steel) Right hand shown (D30) Right hand shown
13–12 d : Stocked items.
