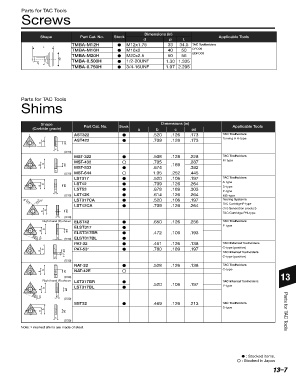

Page 991 - Tungaloy Catalog

Parts for TAC Tools
Screws
Dimensions (in)
Shape Part Cat. No. Stock Applicable Tools
d ø L Applicable Tools
TMBA-M12H d M12x1.75 33 34.5 TAC Toolholders
L
TMBA-M16H d M16x2 40 50 DPD09
TMBA-M20H d M20x2.5 50 56 EDPD09
øD TMBA-0.500H 1/2-20UNF 1.30 1.335
d d
TMBA-0.750H d 3/4-16UNF 1.97 2.295

Parts for TAC Tools
Shims

Shape Dimensions (in)

(Carbide grade) Part Cat. No. Stock Applicable Tools
a b c ød
AST322 d .520 .126 .173 TAC Toolholders
AST422 d .709 .126 .173 Turning A A-type
b
a ød
c
(D30)
MST-322 d .508 .128 .228 TAC Toolholders
MST-432 .705 .287 M-type
b .189
a ød MST-533 d .874 .382
c
(D30) MST-644 1.05 .252 .445
LST317 d .520 .106 .197 TAC Toolholders
LST42 .709 .126 .264 A-type
b d
a ød D-type
LST53 d .878 .189 .303
c P-type
(D30) LST42K d .614 .126 .264 MS-type
8° 8° LST317CA d .520 .106 .197 Tooling Systems
LST42CA d .709 .126 .264 TAC Cartridge P-type
b (1st Generation product)
a ød TAC Cartridge PN-type
c
(D30)
Right hand (R) shown ELST42 d .650 .126 .256 TAC Toolholders
ELST317 d P-type
b
a ød ELST317BR d .472 .106 .193
25° 10° c (D30) ELST317BL d
PAT-32 d .461 .126 .138 TAC External Toolholders
b PAT-53* d .780 .189 .197 C-type (positive)
a ød TAC Internal Toolholders
11°
c C-type (positive)
(D30)
NAT-32 d .528 .126 .138 TAC Toolholders
b NAT-42E C-type
a ød
c (D30) 13
Right hand (R) shown LST317BR d TAC Internal Toolholders
LST317BL .520 .106 .197 P-type
b d
a ød
29° 10° c (D30)
SST32 d .469 .126 .213 TAC Toolholders
S-type
b
a ød Parts for TAC Tools
c
(D30)
Note: marked shims are made of steel.
*

d : Stocked items.
: Stocked in Japan
13–7
