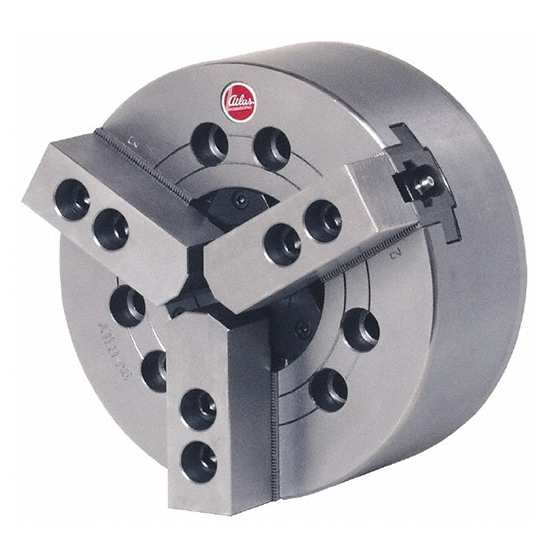

Pratt Burnerd America ATLB8-A6 | 8" King Bore Power Chuck A-6 Mount

$2,275.00
Ships:
From Partner Facility
Brand:
Pratt Burnerd America
Chuck Diameter (Inch):
8"
Number of Jaws:
3
Mount:
A-6
Through-Hole Diameter (Decimal Inch):
2.5900"
Through-Hole Diameter (mm):
66mm
Chuck Actuation Style:
Drawbar
Operation Type:
Hydraulic
Ships:
From Partner Facility
IsDiscontinued:
SKU:
50000104
UPC:
Weight:
53.00 LBS
Shipping:
Free Shipping

Product Specifications
Weight 51 lbs
Brand Pratt Burnerd America
Chuck Size 8"
Thru-Hole Diameter (mm) 66mm
Thru-Hole Diameter (Inch) 2.59"
Mount A-6
Maximum Gripping Capacity (Inch) 8.27"
Minimum Gripping Capacity (Inch) 0.905"
Maximum Gripping Force (lb/f) 19,554 lb/f
Maximum Draw Bar Pull (lb/f) 7,928 lb/f
Jaw Stroke Diameter (Inch) 0.291"
Piston Stroke Length (inch) 0.689"
Maximum RPM 5000 RPM
