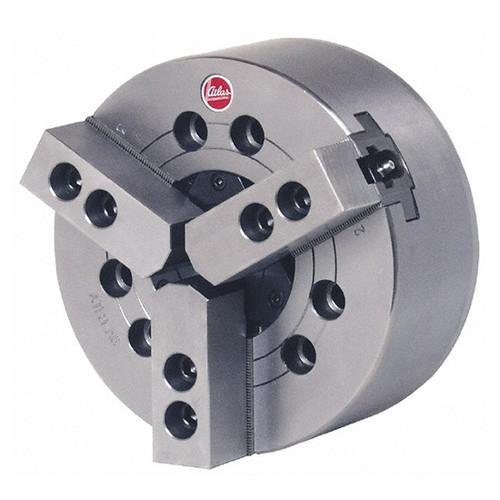

Pratt Burnerd America ATLB10-A6 | 10" King Bore Power Chuck A-6 Mount

$2,675.00
Ships:
From Partner Facility
Brand:
Pratt Burnerd America
Chuck Diameter (Inch):
10"
Number of Jaws:
3
Mount:
A-6
Through-Hole Diameter (Decimal Inch):
3.0700"
Through-Hole Diameter (mm):
78mm
Chuck Actuation Style:
Drawbar
Operation Type:
Hydraulic
Ships:
From Partner Facility
IsDiscontinued:
SKU:
50000098
UPC:
Weight:
83.00 LBS
Shipping:
Calculated at Checkout

Product Specifications
Weight 89 lbs
Brand Pratt Burnerd America
Chuck Size 10"
Thru-Hole Diameter (mm) 78mm
Thru-Hole Diameter (Inch) 3.07"
Mount A-6
Maximum Gripping Capacity (Inch) 10.00"
Minimum Gripping Capacity (Inch) 1.220"
Maximum Gripping Force (lb/f) 28,485 lb/f
Maximum Draw Bar Pull (lb/f) 11,025 lb/f
Jaw Stroke Diameter (Inch) 0.346"
Piston Stroke Length (inch) 0.748"
Maximum RPM 4200 RPM
