The new, improved KURT DX6™ CrossOver™ Vise

Kurt’s DX6™ CrossOver™ Vise was already a legend, and now it’s been updated with a new, "Revision B" design featuring integral casting of the stationary jaw to further reduce deflection and increase stability during clamping.

The refreshed model also features sleek updated graphics that bring it into the modern era, while still retaining identical dimensions to the old DX6 model (as well as the D688) in both fixed jaw location and bed height. When flatness and parallelism are critical, the updated DX6™ CrossOver™ helps you reach new levels of precision and performance.

Reduced deflection; more stability thanks to a cast on stationary design

Previous models of the DX6 used a bolted together assembly. Kurt’s latest revision of the DX6 changes to a cast on stationary design - the same design used on Kurt’s 3600V series for many years. The new design provides more stability and reduced deflection. Without a keyway to match the stationary jaw on, there is much less deflection when clamping compared with previous DX6 models.

Improved Safety

With the previous DX6 model, the chip guard could come out the back and cut the operator if caution was not used. Customers who want to use the chip guard can now trim it as desired for use.

Reduced retention of chips and coolant

Changing to a cast stationary design also delivers other improvements; notably, reduced “blowing back” of coolant and chips on the machine operator during blow off.

Inspired by the Kurt D688 and 3600V Vises

The new, re-designed DX6 combines great features of the Kurt D688 and 3600V vises, using the same bed height and keyway to the stationary jaw face as the D688. There’s also a re-designed nut with a lighter weight, plus a new brush seal design.

The new DX6 features Kurt’s proprietary AngLock® spherical segment, which creates all-directional alignment and reduces jaw lift for improved performance. A larger, strong, and highly durable bearing pack has been added to the updated DX6 as well.

Clamping Force Pounds

Torque Ft. Lbs.

Force Lbs.

10

512

20

1487

30

2464

40

3440

50

4415

60

5391

70

6367

80

7342

Kurt Ironclad Warranty

Ironclad, lifetime warranty from Kurt

Count on your Kurt DX6 vise for a lifetime of service, backed by Kurt’s Ironclad Warranty.

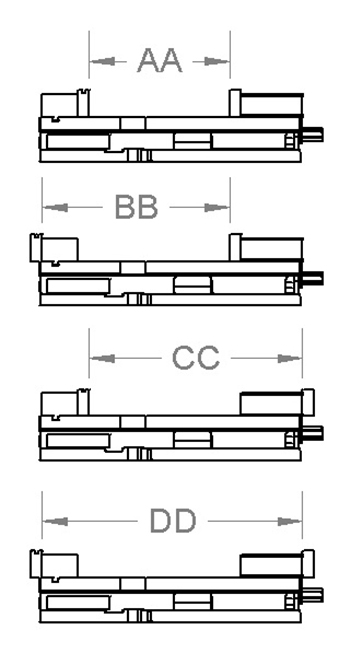

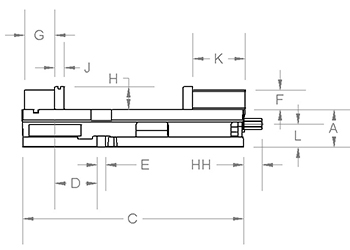

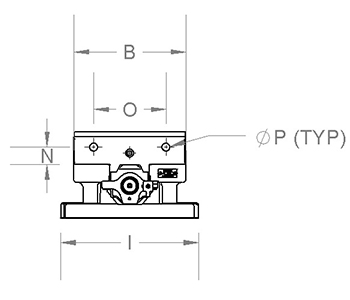

Kurt DX6 Vise Dimensions
