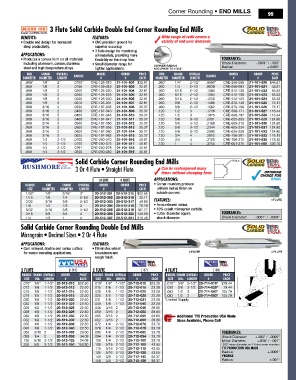

Corner Rounding • END MILLS
99

3 Flute Solid Carbide Double End Corner Rounding End Mills

Benefits: feAtures: Wide range of radii covers a
• Double end design for increased • CNC precision ground for variety of end user demands
shop productivity. superior accuracy.
• 3 flute design for machining
APPLiCAtiOns: all materials, providing more
• Produces a convex form on all materials flexibility on the shop floor. TolERanCES:
including aluminum, carbon, stainless • Small diameter range for corNEr raDIuS Shank Diameter: -.0001" / -.003"
steel and high temperature alloys. tighter applications. accuratE to ±.005" Radius: ±.0005"
EnD Shank ovERall MoDEl oRDER PRiCE EnD Shank ovERall MoDEl oRDER PRiCE
DiaMETER DiaMETER lEngTh RaDiuS # # EaCh DiaMETER DiaMETER lEngTh RaDiuS # # EaCh
.060" 1/8" 2" .0100" CRE-125-010 21-101-502 $32.81 .060" 1/4" 2-1/2" .0900" CRE-250-090 21-101-520 $45.81
.060 1/8 2 .0156 CRE-125-015 21-101-503 32.81 .060 1/4 2-1/2 .0938 CRE-250-093 21-101-521 45.81
.060 1/8 2 .0200 CRE-125-020 21-101-504 32.81 .060 5/16 2-1/2 .1000 CRE-312-100 21-101-522 55.32
.060 1/8 2 .0250 CRE-125-025 21-101-505 32.81 .060 5/16 2-1/2 .1094 CRE-312-109 21-101-523 55.32
.060 1/8 2 .0300 CRE-125-030 21-101-506 32.81 .060 5/16 2-1/2 .1250 CRE-312-125 21-101-524 55.32
.060 1/8 2 .0312 CRE-125-031 21-101-507 32.81 .060 3/8 2-1/2 .1406 CRE-375-140 21-101-525 75.17
.060 3/16 2 .0350 CRE-187-035 21-101-508 35.37 .060 3/8 2-1/2 .1562 CRE-375-156 21-101-526 75.17
.060 3/16 2 .0400 CRE-187-040 21-101-509 35.37 .120 1/2 3 .1718 CRE-500-171 21-101-527 116.44
.060 3/16 2 .0450 CRE-187-045 21-101-510 35.37 .120 1/2 3 .1875 CRE-500-187 21-101-528 116.44
.060 3/16 2 .0469 CRE-187-047 21-101-511 35.37 .120 5/8 3-1/2 .2031 CRE-625-203 21-101-529 124.80
.060 3/16 2 .0500 CRE-187-050 21-101-512 35.37 .120 5/8 3-1/2 .2188 CRE-625-218 21-101-530 124.80
.060 3/16 2 .0550 CRE-187-055 21-101-513 35.37 .120 5/8 3-1/2 .2344 CRE-625-234 21-101-531 124.80
.060 3/16 2 .0600 CRE-187-060 21-101-514 35.37 .120 5/8 3-1/2 .2500 CRE-625-250 21-101-532 124.80
.060 3/16 2 .0625 CRE-187-062 21-101-515 35.37 .120 3/4 4 .2812 CRE-750-281 21-101-533 175.10
.060 1/4 2-1/2 .0700 CRE-250-070 21-101-516 45.81 .120 3/4 4 .3125 CRE-750-312 21-101-535 175.10
.060 1/4 2-1/2 .0750 CRE-250-075 21-101-517 45.81 .120 1 4 .3750 CRE-001-375 21-101-500 326.70
.060 1/4 2-1/2 .0781 CRE-250-078 21-101-518 45.81
.060 1/4 2-1/2 .0800 CRE-250-080 21-101-519 45.81
Solid Carbide Corner Rounding End Mills
3 Or 4 Flute • Straight Flute Can be resharpened many
times without changing form
3 FluTE 4 FluTE APPLiCAtiOns:
RaDiuS EnD Shank ovERall oRDER oRDER PRiCE • Corner rounders produce
SizE DiaMETER DiaMETER lEngTh # # EaCh uniform radius finish on
1/32" 1/8" 3/16" 2" 20-512-301 20-512-315 $22.66 outside corners.
1/16 1/8 1/4 2-1/2 20-512-302 20-512-316 32.11 feAtures: 4 FLutE
3/32 3/16 3/8 2-1/2 20-512-303 20-512-317 48.86
1/8 1/4 1/2 3 20-512-304 20-512-318 76.78 • Form relieved radius.
5/32 5/16 5/8 3-1/2 20-512-305 20-512-319 107.77 • 10% cobalt micrograin carbide.
3/16 3/8 3/4 4 20-512-306 20-512-320 149.69 • Cutter diameter equals TolERanCES:
1/4 1/2 1 4 20-512-307 20-512-321 210.46 shank diameter. Shank Diameter: -.0001" / -.0004"
Solid Carbide Corner Rounding Double End Mills
Micrograin • Decimal Sizes • 2 Or 4 Flute

APPLiCAtiOns: feAtures:
• Cam relieved, double end radius cutters • Eliminates wheel
for corner rounding applications. breakdown and 2 FLutE 4 FLutE

rough finish.

2 FluTE [1512] 2 FluTE [137] 4 FluTE [138]
RaDiuS Shank ovERall oRDER PRiCE RaDiuS Shank ovERall oRDER PRiCE RaDiuS Shank ovERall oRDER PRiCE
SizE Dia. lEngTh # EaCh SizE Dia. lEngTh # EaCh SizE Dia. lEngTh # EaCh
.010" 1/8" 1-1/2" 20-512-010 $22.50 .010" 1/8" 1-1/2" 20-712-010 $23.28 .010" 3/8" 2-1/2" 20-714-010* $79.44
.012 1/8 1-1/2 20-512-012 22.50 .015 1/8 1-1/2 20-712-015 23.28 .020 3/8 2-1/2 20-714-020* 79.44
.015 1/8 1-1/2 20-512-015 22.50 .020 1/8 1-1/2 20-712-020 23.28 .062 1/2 3 20-714-062* 105.79
.018 1/8 1-1/2 20-512-018 22.50 .025 1/8 1-1/2 20-712-025 23.28 .093 1/2 3 20-714-093* 105.79
.020 1/8 1-1/2 20-512-020 22.50 .031 1/8 1-1/2 20-712-031 23.28 *Limited Supply
.022 1/8 1-1/2 20-512-022 22.50 .040 1/8 1-1/2 20-712-040 23.28
.025 1/8 1-1/2 20-512-025 22.50 .046 3/16 2 20-712-046 28.80
.028 1/8 1-1/2 20-512-028 22.50 .050 3/16 2 20-712-050 28.80
.030 1/8 1-1/2 20-512-030 22.50 .055 3/16 2 20-712-055 28.80 Additional TTC Production USA Made
.032 1/8 1-1/2 20-512-032 22.50 .062 3/16 2 20-712-062 28.80 Sizes Available, Please Call
.035 1/8 1-1/2 20-512-035 22.50 .072 1/4 2-1/2 20-712-072 33.78
.040 1/8 1-1/2 20-512-040 22.50 .078 1/4 2-1/2 20-712-078 33.78
.062 3/16 2 20-512-062 29.00 .085 1/4 2-1/2 20-712-085 33.78 TolERanCES:
.093 1/4 2 20-512-093 34.09 .094 1/4 2-1/2 20-712-094 33.78 Shank Diameter: +.000" / -.0005"
.125 5/16 2-1/2 20-512-125 34.09 .100 1/4 2-1/2 20-712-100 33.78 Minor Diameter: +.000" / -.007"
.250 5/8 3-1/2 20-512-250 150.80 .109 5/16 2-1/2 20-712-109 43.55 .250" minor diameter on 4 Flute corner rounders
.118 5/16 2-1/2 20-712-118 43.55 TTC PRoDuCTion uSa MaDE
.125 5/16 2-1/2 20-712-125 43.55 Radius: ±.0005"
.140 3/8 2-1/2 20-712-140 58.37 PRoMax
.156 3/8 2-1/2 20-712-156 58.37 Radius: ±.001"
