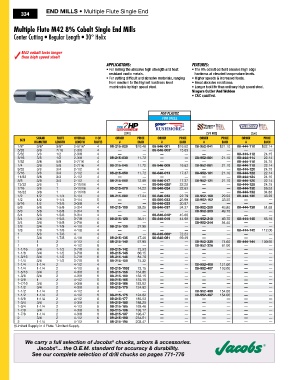

P. 336
END MILLS • Multiple Flute Single End
334
Multiple Flute M42 8% Cobalt Single End Mills
Center Cutting • Regular Length • 30° Helix
M42 cobalt lasts longer
than high speed steel!
APPLICATIONS: FeATureS:
• For milling the abrasive high strength and heat • The 8% cobalt content ensures high edge
resistant exotic metals. hardness at elevated temperature levels.
• For cutting difficult and abrasive materials, ranging • Higher speeds & increased feeds.
from medium to the highest hardness level • Great abrasive resistance.
machinable by high speed steel. • Longer tool life than ordinary high speed steel.
Niagara Cutter And Weldon
• CNC qualified.
For Plastic
For steel
[D41] [SPC 408] [CoA]
Shank FlutE OvErall # OF OrDEr PriCE OrDEr PriCE OrDEr PriCE OrDEr PriCE
SizE
DiaMEtEr lEngth lEngth FlutES # EaCh # EaCh # EaCh # EaCh
1/8" 3/8" 3/8" 2-5/16" 4 08-215-020 $10.48 08-846-001 $16.62 08-952-041 $21.10 08-444-110 $22.14
5/32 3/8 7/16 2-3/8 4 — — 08-846-003* 15.63 — — — —
5/32 3/8 1/2 2-3/8 4 — — — — — — 08-444-112 24.15
3/16 3/8 1/2 2-3/8 4 08-215-030 11.72 — — 08-952-061 21.10 08-444-114 22.14
7/32 3/8 5/8 2-7/16 4 — — — — — — 08-444-116 24.15
1/4 3/8 5/8 2-7/16 4 08-215-040 11.72 08-846-009 16.62 08-952-081 21.10 08-444-118 22.14
9/32 3/8 3/4 2-1/2 4 — — — — — — 08-444-120 24.15
5/16 3/8 3/4 2-1/2 4 08-215-050 11.72 08-846-013 17.37 08-952-101 21.10 08-444-122 22.14
11/32 3/8 3/4 2-1/2 4 — — — — — — 08-444-124 24.15
3/8 3/8 3/4 2-1/2 4 08-215-060 12.89 08-846-017 17.37 08-952-121 21.10 08-444-126 22.14
13/32 3/8 1 2-11/16 4 — — 08-846-020* 22.28 — — 08-444-128 24.15
7/16 3/8 1 2-11/16 4 08-215-070 14.22 08-846-024 22.63 — — 08-444-130 26.53
15/32 3/8 1 2-11/16 4 — — — — — — 08-444-132 34.83
1/2 1/2 1-1/4 3-1/4 4 08-215-080 17.04 08-846-033 22.79 08-952-160 29.50 08-444-136 43.23
1/2 1/2 1-1/4 3-1/4 6 — — 08-866-033 25.89 08-952-162 33.30 — —
9/16 1/2 1-3/8 3-3/8 4 — — 08-846-035 30.87 — — — —
5/8 5/8 1-5/8 3-3/4 4 08-215-100 28.25 08-846-037 34.27 08-952-200 43.80 08-444-138 51.69
5/8 5/8 1-5/8 3-3/4 6 — — — — 08-952-203 49.70 — —
3/4 5/8 1-5/8 3-3/4 4 — — 08-846-048* 45.68 — — — —
3/4 3/4 1-5/8 3-7/8 4 08-215-120 36.51 08-846-049 44.68 08-952-240 49.70 08-444-140 65.16
3/4 3/4 1-5/8 3-7/8 6 — — — — 08-952-244 54.40 — —
7/8 3/4 1-7/8 4-1/8 4 08-215-130 37.99 — — — — — —
7/8 7/8 1-7/8 4-1/8 4 — — — — — — 08-444-142 112.00
1 5/8 1-7/8 4 4 — — 08-846-080* 72.23 — — — —
1 3/4 1-7/8 4-1/8 4 08-215-135 47.46 08-846-081 69.49 — — — —
1 1 2 4-1/2 4 08-215-140 57.99 — — 08-952-320 74.60 08-444-144 100.65
1 1 2 4-1/2 6 — — — — 08-952-326 81.00 — —
1-1/16 3/4 1-1/2 3-7/8 6 08-215-142 73.53 — — — — — —
1-1/8 3/4 1-1/2 3-7/8 6 08-215-145 80.15 — — — — — —
1-3/16 3/4 1-1/2 3-7/8 6 08-215-146 84.79 — — — — — —
1-1/4 3/4 1-1/2 3-7/8 6 08-215-150 74.32 — — — — — —
1-1/4 1-1/4 2 4-1/2 4 — — — — 08-952-400 121.00 — —
1-1/4 1-1/4 2 4-1/2 6 08-215-155† 73.15 — — 08-952-407 133.00 — —
1-5/16 3/4 2 4-3/8 6 08-215-156 154.85 — — — — — —
1-3/8 3/4 2 4-3/8 6 08-215-160 133.15 — — — — — —
1-3/8 1 2 4-1/2 6 08-215-165 133.15 — — — — — —
1-7/16 3/4 2 4-3/8 6 08-215-166 183.82 — — — — — —
1-1/2 3/4 2 4-3/8 6 08-215-170 124.82 — — — — — —
1-1/2 1-1/4 2 4-1/2 4 — — — — 08-952-480 154.00 — —
1-1/2 1-1/4 2 4-1/2 6 08-215-175 124.82 — — 08-952-487 154.00 — —
1-5/8 1-1/4 2 4-1/2 6 08-215-177 185.53 — — — — — —
1-3/4 3/4 2 4-3/8 6 08-215-180 188.29 — — — — — —
1-3/4 1-1/4 2 4-1/2 6 08-215-185 169.46 — — — — — —
1-7/8 3/4 2 4-3/8 6 08-215-186 198.17 — — — — — —
1-7/8 1-1/4 2 4-3/8 6 08-215-187 196.47 — — — — — —
2 3/4 2 4-1/2 6 08-215-190 234.51 — — — — — —
2 1-1/4 2 4-1/2 6 08-215-195 203.47 — — — — — —
†Limited Supply in 4 Flute. *Limited Supply.
We carry a full selection of Jacobs chucks, arbors & accessories.
®
Jacobs ... the O.E.M. standard for accuracy & durability.
®
See our complete selection of drill chucks on pages 771-776
