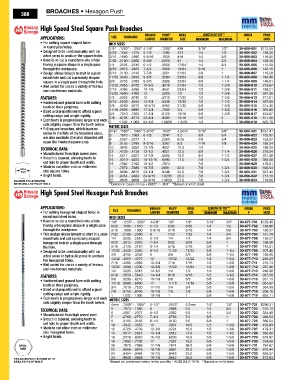

High Speed Steel Square Push Broaches
BroacH PiloT* Drill ____lengTH of cuT**____ orDer Price
APPLICATIONS: Size Tolerance lengTH DiameTer Size minimum maximum # eacH
• For cutting square shaped holes incH SizeS
in round pilot holes. 1/8" .1250" - .1260" 4-1/8" .1285" #30 3/16" 1/2" 30-666-601 $113.59
• Designed to be used manually with an 5/32 .1565 - .1575 5-1/8 .1590 #21 1/4 1/2 30-666-602 128.35
arbor press to produce the square holes. 3/16 .1880 - .1890 5-9/16 .1935 #10 1/4 5/8 30-666-603 116.86
• Used to re-cut a round hole into a hole 7/32 .2190 - .2200 6-3/8 .2280 #1 1/4 3/4 30-666-604 128.35
having a square shape in a single pass 1/4 .2505 - .2515 6-1/2 .2656 17/64" 1/4 3/4 30-666-605 113.59
through the workpiece. 9/32 .2815 - .2825 7-3/4 .2969 19/64 5/16 1 30-666-606 142.15
• Design allows broach to start in a plain 5/16 .3130 - .3140 7-7/8 .3281 21/64 3/8 1 30-666-607 116.28
round hole and cut a precisely shaped 11/32 .3440 - .3450 9-3/8 .3594 23/64 3/8 1-1/4 30-666-608 184.45
square in a single pass through the hole. 3/8 .3755 - .3765 9-3/8 .3906 25/64 3/8 1-1/4 30-666-609 148.01
• Well suited for use in a variety of ferrous 13/32 .4065 - .4075 10-5/8 .4219 27/64 1/2 1-3/8 30-666-610 219.67
and non-ferrous materials. 7/16 .4385 - .4395 10-7/8 .4531 29/64 1/2 1-3/8 30-666-611 188.21
15/32 .4690 - .4700 12 .5000 1/2 1/2 1-3/8 30-666-612 287.36
FeATureS: 1/2 .5005 - .5015 12 .5312 17/32 1/2 1-3/8 30-666-613 217.61
• Hardened and ground bars with cutting 9/16 .5630 - .5640 14-3/4 .5938 19/32 1/2 1-1/2 30-666-614 267.89
teeth on their periphery. 5/8 .6260 - .6270 16-5/16 .6562 21/32 5/8 1-5/8 30-666-615 314.36
• Sized and proportioned to afford a good 11/16 .6885 - .6895 17-3/4 .7500 3/4 5/8 1-5/8 30-666-616 365.90
cutting range and ample rigidity. 3/4 .7510 - .7520 17-3/4 .8125 13/16 5/8 1-5/8 30-666-617 424.67
30-666-618
.9395
7/8
15/16
1/2
2
.8765 - .8775
22-3/4
611.26
• Each tooth is progressively larger and each 1 1.002 - 1.003 24-1/8 1.0938 1-3/32 1/2 2 30-666-619 635.70
cuts slightly deeper than the tooth before. meTric SizeS
• Full square broaches, which leave no
radius in the flats of the broached piece, 4mm .1580" - .1585" 5-9/16" .1655" 4.2mm 5/16" 5/8" 30-666-621 $131.41
5.2
163.87
6-7/8
5
30-666-622
3/4
3/8
.1973 - .1983
.2047
are also available (the pilot diameter will 6 .2367 - .2377 7 .2500 6.35 3/8 3/4 30-666-623 163.87
equal the finished square size). 8 .3155 - .3165 8-3/16 .3267 8.3 7/16 7/8 30-666-624 165.24
TeChNICAL DATA: 10 .3942 - .3952 10-7/8 .4057 10.3 1/2 1 30-666-625 189.25
• Manufactured from high speed steel. 12 .4729 - .4739 12-1/2 .4921 12.5 5/8 1-1/4 30-666-626 279.54
3/4
.5905
15.0
331.38
1-1/2
30-666-627
14
14-7/8
.5517 - .5527
• Broach is tapered, allowing teeth to 16 .6310 - .6320 16-13/16 .6693 17.0 7/8 1-3/4 30-666-628 383.56
cut hole to proper depth and width. 18 .7092 - .7102 18-1/2 .7874 7/8 30-666-629 476.51
• Made to cut either inch or millimeter .7879 - .7889 18-7/8 .8661 22.0 7/8 1-3/4 30-666-630 600.54
size square holes. 22 .8666 - .8676 23-1/4 .9448 24.0 7/8 1-3/4 30-666-631 627.44
• Bright finish. 24 .9454 - .9464 24-9/16 1.0236 26.0 7/8 1-3/4 30-666-632 713.10
SQUARE HOLE SHOWN 25 .9848 - .9858 24-9/16 1.0630 27.0 7/8 1-3/4 30-666-633 716.06
WITH DRILLED PILOT HOLE *Tolerance: basis minus +.0005" / -.001" **Based on mild steel.
High Speed Steel Hexagon Push Broaches
APPLICATIONS: BroacH PiloT* Drill ____lengTH of cuT**____ orDer Price
• For cutting hexagonal shaped holes in Size Tolerance lengTH DiameTer Size minimum maximum # eacH
round machined holes. incH SizeS
• Used to re-cut a round hole into a hole 1/8" .1255" - .1260" 4-5/8" 1/8" 1/8" 3/16" 3/8" 30-677-701 $129.45
having a hexagonal shape in a single pass 5/32 .1565 - .1570 5-1/2 5/32 5/32 1/4 1/2 30-677-702 146.80
through the workpiece. 3/16 .1880 - .1890 5-9/16 3/16 3/16 1/4 5/8 30-677-703 136.27
• This design allows broach to start in a plain 7/32 .2190 - .2200 6 7/32 7/32 1/4 3/4 30-677-704 161.76
round hole and cut a precisely shaped 1/4 .2505 - .2515 6-1/2 1/4 1/4 1/4 3/4 30-677-705 136.27
hexagonal hole in a single pass through 9/32 .2815 - .2825 7-3/4 9/32 9/32 3/8 1 30-677-706 168.58
the hole. 5/16 .3130 - .3140 8-1/4 5/16 5/16 3/8 1 30-677-707 142.51
• Designed to be used manually with an 11/32 .3440 - .3450 8-1/4 11/32 11/32 3/8 1-1/4 30-677-708 207.45
arbor press or hydraulic press to produce 3/8 .3755 - .3765 9 3/8 3/8 3/8 1-1/4 30-677-709 166.68
the hexagonal holes. 13/32 .4065 - .4075 10 13/32 13/32 1/2 1-3/8 30-677-710 248.23
• Well suited for use in a variety of ferrous 7/16 .4385 - .4395 10-3/4 7/16 7/16 1/2 1-3/8 30-677-711 210.74
and non-ferrous materials. 15/32 .4690 - .4700 12-3/8 15/32 15/32 1/2 1-3/8 30-677-712 297.46
1/2 .5005 - .5015 12-1/2 1/2 1/2 1/2 1-3/8 30-677-713 246.58
FeATureS: 9/16 .5630 - .5640 14-1/4 9/16 9/16 1/2 1-1/2 30-677-714 287.56
• Hardened and ground bars with cutting 5/8 .6260 - .6270 16-7/8 5/8 5/8 5/8 1-5/8 30-677-715 331.13
teeth on their periphery. 11/16 .6880 - .6890 17 11/16 11/16 5/8 1-5/8 30-677-716 364.87
30-677-717
3/4
1-5/8
384.58
3/4
5/8
17-7/8
.7510 - .7520
3/4
• Sized and proportioned to afford a good 7/8 .8755 - .8765 18-7/8 7/8 7/8 5/8 1-5/8 30-677-718 606.15
cutting range and ample rigidity. 1 1.002 - 1.003 19-7/8 1 1 5/8 1-5/8 30-677-719 635.11
• Each tooth is progressively larger and each meTric SizeS
cuts slightly deeper than the tooth before.
4mm .1580" - .1585" 5-1/2" .1575" 4.0mm 1/4" 1/2" 30-677-721 $296.31
TeChNICAL DATA: 5 .1973 - .1983 6 .1968 5.0 1/4 3/4 30-677-722 310.13
• Manufactured from high speed steel. 6 7 .2367 - .2377 6-1/2 .2362 6.0 1/4 3/4 30-677-723 324.49
30-677-724
.2756
1
366.54
7-3/4
7.0
3/8
.2760 - .2770
• Broach is tapered, allowing teeth to 8 .3155 - .3165 8-1/4 .3150 8.0 3/8 1 30-677-725 366.54
cut hole to proper depth and width. 10 .3942 - .3952 10 .3937 10.0 1/2 1-3/8 30-677-726 450.93
• Made to cut either inch or millimeter 12 .4729 - .4739 12-3/8 .4724 12.0 1/2 1-3/8 30-677-727 479.31
size hexagonal holes. 14 .5517 - .5527 14-1/4 .5512 14.0 1/2 1-1/2 30-677-728 563.60
• Bright finish. 16 .6310 - .6320 16-7/8 .6230 16.0 5/8 1-5/8 30-677-729 619.97
18 .7092 - .7102 17 .7087 18.0 5/8 1-5/8 30-677-730 704.56
20 .7879 - .7889 17-7/8 .7874 20.0 5/8 1-5/8 30-677-731 784.87
22 .8666 - .8676 18-7/8 .8661 22.0 5/8 1-5/8 30-677-732 810.44
24 .9454 - .9464 19-7/8 .9449 24.0 5/8 1-5/8 30-677-733 859.57
HEXAGON HOLE SHOWN WITH 25 .9848 - .9858 19-7/8 .9842 25.0 5/8 1-5/8 30-677-734 873.93
DRILLED PILOT HOLE *Based on preferred metric limits and fits - ANSI B4.2-1978. **Based on mild steel.
