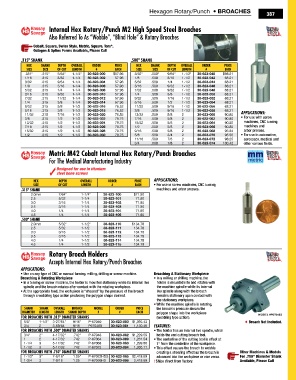

Hexagon Rotary/Punch • BROACHES
387

Internal Hex Rotary/Punch M2 High Speed Steel Broaches
Also Referred To As “Wobble”, “Blind Hole” & Rotary Broaches

Cobalt, Square, Swiss Style, Metric, Square, Torx ,
®
Octagon & Spline Forms Available, Please Call
.315" SHank .500" SHank
Hex SHank DePtH OveRall ORDeR PRICe Hex SHank DePtH OveRall ORDeR PRICe
SIze SIze Of Cut lengtH # eaCH SIze SIze Of Cut lengtH # eaCH
.051" .315" 5/64" 1-1/4" 30-623-000 $57.96 3/32" .500" 9/64" 1-1/2" 30-623-040 $68.21
1/16 .315 3/32 1-1/4 30-623-002 57.96 1/8 .500 3/16 1-1/2 30-623-042 68.21
3/32 .315 9/64 1-1/4 30-623-004 57.96 5/32 .500 1/4 1-1/2 30-623-044 68.21
1/8 .315 3/16 1-1/4 30-623-006 57.96 3/16 .500 9/32 1-1/2 30-623-046 68.21
5/32 .315 1/4 1-1/4 30-623-008 57.96 7/32 .500 9/32 1-1/2 30-623-048 68.21
3/16 .315 9/32 1-1/4 30-623-010 57.96 1/4 .500 3/8 1-1/2 30-623-050 68.21
7/32 .315 11/32 1-1/4 30-623-012 57.96 9/32 .500 7/16 1-1/2 30-623-052 68.21
1/4 .315 3/8 1-1/4 30-623-014 57.96 5/16 .500 1/2 1-1/2 30-623-054 68.21
9/32 .315 3/8 1-1/2 30-623-016 76.52 11/32 .500 9/16 1-1/2 30-623-056 68.21
5/16 .315 3/8 1-1/2 30-623-018 76.52 3/8 .500 9/16 1-1/2 30-623-058 68.21 APPLICATIONS:
11/32 .315 7/16 1-1/2 30-623-020 76.52 13/32 .500 5/8 2 30-623-060 90.80
3/8 .315 1/2 1-1/2 30-623-022 79.75 7/16 .500 5/8 2 30-623-062 90.80 • For use with screw
13/32 .315 1/2 1-1/2 30-623-024 79.75 15/32 .500 5/8 2 30-623-064 90.80 machines, CNC turning
7/16 .315 1/2 1-1/2 30-623-026 79.75 1/2 .500 5/8 2 30-623-066 90.80 machines and
15/32 .315 1/2 1-1/2 30-623-028 79.75 9/16 .500 5/8 2 30-623-068 93.34 arbor presses.
1/2 .315 1/2 1-1/2 30-623-030 79.75 5/8 .500 3/4 2 30-623-070 95.50 • For use in automotive,
11/16 .500 7/8 2 30-623-072 98.25 aerospace, medical and
3/4 .500 7/8 2 30-623-074 100.42 other various fields.
Metric M42 Cobalt Internal Hex Rotary/Punch Broaches
For The Medical Manufacturing Industry

Designed for use in titanium
steel bone screws
Hex DePtH OveRall ORDeR PRICe APPLICATIONS:
SIze Of Cut lengtH # eaCH • For use in screw machines, CNC turning
.315" SHank machines and arbor presses.
2.0mm 7/64" 1-1/4" 30-623-100 $71.90
2.5 5/32 1-1/4 30-623-101 71.90
3.0 3/16 1-1/4 30-623-102 71.90
3.5 3/16 1-1/4 30-623-103 71.90
4.0 1/4 1-1/4 30-623-104 71.90
4.5 1/4 1-1/4 30-623-105 71.90
.500" SHank
2.0mm 5/32" 1-1/2" 30-623-110 $134.78
2.5 5/32 1-1/2 30-623-111 134.78
3.0 3/16 1-1/2 30-623-112 134.78
3.5 3/16 1-1/2 30-623-113 134.78
4.0 1/4 1-1/2 30-623-114 134.78
4.5 1/4 1-1/2 30-623-115 134.78
Rotary Broach Holders
Accepts Internal Hex Rotary/Punch Broaches

APPLICATIONS:
• Use on any type of CNC or manual turning, milling, drilling or screw machine. Broaching A Stationary Workpiece
Broaching A Rotating Workpiece • In a milling or drilling machine, the
• In a turning or screw machine, the holder is mounted stationary while its internal live holder is mounted into and rotates with
spindle and the broach rotates after contact with the rotating workpiece. the machine spindle while its internal
• At the appropriate feed, the workpiece is “sheared” by the pressure of the broach live spindle along with the broach
through a wobbling type action producing the polygon shape desired. remains stationary upon contact with
the stationary workpiece.
• While the machine spindle is rotating,
SHank SHank OveRall BROaCH MODel ORDeR PRICe the broach's pressure shears the
DIaMeteR lengtH lengtH SHank DePtH # # eaCH polygon shape into the workpiece
fOR BROaCHeS WItH .315" DIaMeteR SHankS (wobbling type action). mOdEl #P67048S
5/8" 1-1/2" 3-27/64" 9/16" P-67040 30-623-080 $1,095.43 ♦ Broach Not Included.
3/4 2 3-59/64 9/16 P67048S 30-623-081 1,130.40 FeATureS:
fOR BROaCHeS WItH .500" DIaMeteR SHankS • The holder has an internal live spindle, which
3/4" 2" 4-17/32" .742" P-67048 30-623-082 $1,229.55 holds the end cutting broach tool.
1 2 4-17/32 .742 P-67064 30-623-089 1,261.54 • The centerline of the cutting tool is offset at
1-1/4 3 5-17/32 .742 P-67068 30-623-083 1,299.86 1° from the centerline of the workpiece.
1-1/2 3 5-17/32 .742 P-67072 30-623-084 1,336.11 • This offset causes the broach to wobble
fOR BROaCHeS WItH .750" DIaMeteR SHankS creating a shearing effect as the broach is Other Machines & Models
1-1/2" 3" 7-9/16" 1.25" P-67072HDS 30-623-085 $2,418.69 advanced into the workpiece or vise versa. For .750" Diameter Shank
1-3/4 3 7-9/16 1.25 P-67076HD 30-623-086 2,418.69 †Ships direct from factory. Available, Please Call
