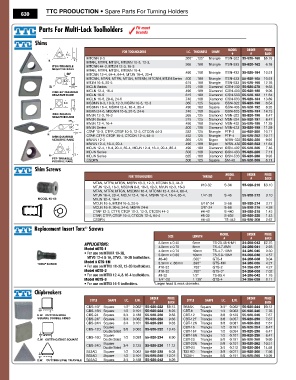

Page 632 - All Industrial Tool Supply | General Catalog

TTC PRODUCTION • Spare Parts For Turning Holders
630

Parts For Multi-Lock Toolholders Fit most
brands
Shims
ModeL oRdeR PRICe
FoR TooLhoLdeRS I.C. ThICkneSS ShaPe
# # eaCh
MTCNN 8-3 .365" .125" Triangle ITSN-322 55-920-160 $6.78
MTAN, MTFN, MTGN, MTENN 10-3, 12-3,
itSn-triangLE MTCNN 44-3, MTJN 12-3, 16-3 .365 .188 Triangle ITSN-333 55-920-162 6.78
nEgatiVE raKE
MTAN, MTFN, MTGN, MTENN 16-4, .490 .188 Triangle ITSN-432 55-920-164 10.51
MTCNN 12-4, 64-4, 64-4, MTJN 16-4, 20-4
MTCNN, MTAN, MTFN, MTGN, MTENN, MTCNN, MTJN Series .500 .188 Triangle ITSN-433 55-920-165 10.51
MTJN 16-5, 20-5 .615 .188 Triangle ITSN-533 55-920-168 12.76
MCLN Series .375 .188 Diamond ICSN-332 55-920-278 9.58
iCSn-80° DiaMOnD MCLN 12-4, 16-4 .490 .188 Diamond ICSN-433 55-920-180 9.26
nEgatiVE raKE MCLN 16-5 .615 .188 Diamond ICSN-533 55-920-182 11.64
MCLN 16-6, 20-6, 24-6 .740 .188 Diamond ICSN-633 55-920-184 13.89
MSDNN 8-3, 10-3, 12-3, MSRN 10-3, 12-3 .365 .125 Square ISSN-322 55-920-190 6.54
MSDNN 16-4, MSRN 12-4, 16-4, 85-4 .490 .188 Square ISSN-433 55-920-192 8.25
MSRN 24-6, MSDNN 16-6, 20-6, 24-6 .740 .188 Square ISSN-633 55-920-194 14.13
iSSn-SquarE MVJN 12-3, 16-3 .365 .125 Diamond IVSN-322 55-920-196 8.47
nEgatiVE raKE
MVJN Series .375 .125 Diamond IVSN-324 55-920-197 8.47
MVJN 12-4, 16-4 .490 .188 Diamond IVSN-432 55-920-198 11.29
MVJN Series .500 .188 Diamond IVSN-433 55-920-199 11.29
CTAP 12-3, CTFP, CTGP 10-3, 12-3, CTCON 44-3 .332 .125 Triangle PTP-3 55-920-200 10.17
iVSn-DiaMOnD CTAP, CTFP, CTGP 16-4, CTCON 12-4, 64-4 .452 .125 Triangle PTP-4 55-920-202 10.17
nEgatiVE raKE MWLN 12-3 .365 .125 Trigon IWSN-322 55-920-300 9.93
MWLN 12-4, 16-4, 20-4 .490 .188 Trigon IWSN-432 55-920-302 11.54
MDJN 12-4, 16-4, 20-4, 85-4, MDJN 12-4, 16-4, 20-4, 85-4 .490 .188 Diamond IDSN-432 55-920-306 7.46
MDJN Series .500 .188 Diamond IDSN-433 55-920-286 7.11
MDJN Series .625 .188 Diamond IDSN-533 55-920-288 9.93
PtP-triangLE
POSitiVE raKE CSDPN .500 .125 Square SM-40 55-920-308 6.71
Shim Screws
ModeL oRdeR PRICe
FoR TooLhoLdeRS ThRead
# # eaCh
MTAN, MTFN, MTGN, MSRN 10-3, 12-3, MTCNN 8-3, 44-3
MTJN 12-3, 16-3, MSDNN 8-3, 10-3, 12-3, MVJN 12-3, 16-3 #10-32 S-34 55-920-210 $3.10
MTAN, MTFN, MTGN, MSDNN 16-4, MTCNN 12-4, 64-4, 66-4,
MTJN 16-4, 20-4, MCLN 12-4, 16-4, MSRN 12-4, 16-4, 85-4, 1/4"-28 S-46 55-920-212 3.10
MODEL #S-68 MVJN 12-4, 16-4
MCLN 16-5, MTJN 16-5, 20-5 5/16"-24 S-58 55-920-214 3.77
MCLN 16-6, 20-6, 24-6, MSRN 24-6 3/8"-24 S-68 55-920-216 4.28
CTAP 12-3, CTFP, CTGP 10-3, 12-3, CTCON 44-3 #4-40 S-440 55-920-218 1.43
CTAP, CTFP, CTGP 16-4, CTCON 12-4, 64-4 #8-32 S-832 55-920-220 1.43
CSDPN #4-40 TS-442 55-920-208 2.67
Replacement Insert Torx Screws
®
ModeL oRdeR PRICe
SIze LengTh
# # eaCh
APPLICATIONS: 2.5mm x 0.45 6mm TS-25.45-6-M1 24-286-043 $2.76
Model #GTS-1 4.0mm x 0.70 8mm TS-4.7-8M1 24-286-041 2.93
24-286-045
TS-4.7-10M1
3.30
4.0mm x 0.70
10mm
• For use on MTVOR 10-3B, 5.0mm x 0.80 10mm TS-5.8-10M1 24-286-046 4.57
MTV0 12-4 & 16, STVOL 10-3B toolholders. #6-40 .500" GTS-1 24-286-036 3.04
Model # GTS-1M
tOrX ® SCrEW 3.5mm x .60mm .390" GTS-1M 24-286-035 4.27
• For use on MTVO 10-3B, 12-3B toolholders. #10-32 .750" GTS-2 24-286-037 4.27
Model #GTS-2 #10-32 .750" GTS-3* 24-286-038 7.02
• For use on MTV0 12-4, & 16-4 toolholders. #8-32 1/2" TS-83.4 24-286-042 1.76
Model #GTS-3 1/4"-20 1.120" GTS-4 24-286-039 8.11
• For use on MTV0 16-5 toolholders. *Larger head & neck diameter.
Chipbreakers
oRdeR PRICe oRdeR PRICe
STyLe ShaPe I.C. e.W. STyLe ShaPe I.C. e.W.
# eaCh # eaCh
CBS-16F Square 1/2" 0.062" 55-920-222 $8.13 S63AK Square 3/4" 0.062" 55-920-244 $9.13
CBS-16N Square 1/2 0.101 55-920-224 8.25 CBT-8 Triangle 1/4 0.062 55-920-246 7.76
E.W. Cutting EDgE CBS-24 Square 3/4 0.188 55-920-226 9.83 CBT-12 Triangle 3/8 0.129 55-920-248 7.67
SquarE DOubLE SiDED CBS-24F Square 3/4 0.062 55-920-228 9.68 CBT-12F Triangle 3/8 0.057 55-920-250 7.67
CBS-24N Square 3/4 0.101 55-920-230 9.83 CBT-12N Triangle 3/8 0.081 55-920-252 7.67
Square CBT-16 Triangle 1/2 0.191 55-920-254 8.47
CBS-12D 3/8 0.062 55-920-232 10.45
Double Sided CBT-16F Triangle 1/2 0.054 55-920-256 8.47
Square CBT-16N Triangle 1/2 0.101 55-920-258 8.47
CBS-16D 1/2 0.093 55-920-234 8.90
E.W. Cutting EDgE SquarE Double Sided CBT-20 Triangle 5/8 0.191 55-920-260 9.60
Square CBT-20N Triangle 5/8 0.101 55-920-262 10.51
CBS-24D 3/4 0.125 55-920-236 11.12
Double Sided CBT-24 Triangle 3/4 0.312 55-920-264 14.69
S43AD Square 1/2 0.062 55-920-238 9.03 T33 AD Triangle 3/8 0.071 55-920-266 7.56
S63AD Square 1/2 0.101 55-920-240 10.01 T53AH Triangle 5/8 0.151 55-920-268 10.99
E.W. Cutting EDgE triangLE S63AG Square 3/4 0.188 55-920-242 9.26
