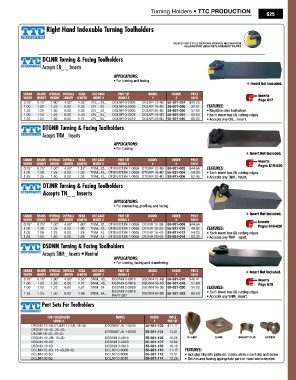

Right Hand Indexable Turning Toolholders

New D TOP STyle DeSIgN lOCkINg meChaNISm
allOwS fOR leSS RePlaCemeNT PaRTS
DCLNR Turning & Facing Toolholders
Accepts CN_ _ Inserts

APPLICATIONS:
• For turning and facing.
♦ Insert Not Included.

SHANk SHANk OveRALL OveRALL HeAD USe GAGe PART SeT MODeL ORDeR PRICe Inserts
WIDTH HeIGHT HeIGHT LeNGTH LeNGTH INSeRT # MODeL # # # eACH Page 617
0.75" 0.75" 1.00" 4.50" 1.35" CN_ _43_ DCLNR 0-0006 DCLNR 12-4B 55-921-024 $45.25
1.00 1.00 1.25 6.00 1.35 CN_ _43_ DCLNR 0-0006 DCLNR 16-4D 55-921-028 50.51 FeATureS:
1.25 1.25 1.50 6.00 1.35 CN_ _43_ DCLNR 0-0006 DCLNR 20-4D 55-921-030 57.60 • Negative rake toolholder.
1.00 1.00 1.25 6.00 1.43 CN_ _54_ DCLNR 0-0008 DCLNR 16-5D 55-921-034 52.64 • Each insert has (4) cutting edges.
1.25 1.25 1.50 6.00 1.74 CN_ _64_ DCLNR 0-0010 DCLNR 20-6D 55-921-040 66.35 • Accepts any CN__ insert.
DTGNR Turning & Facing Toolholders
Accepts TNM_ Inserts
APPLICATIONS:
• For turning.
♦ Insert Not Included.
SHANk SHANk OveRALL OveRALL HeAD USe GAGe PART SeT MODeL ORDeR PRICe Inserts
WIDTH HeIGHT HeIGHT LeNGTH LeNGTH INSeRT # MODeL # # # eACH Pages 619-620
0.75" 0.75" 1.00" 4.50" 1.12" TNM_ 32_ DTGN/DTJN 1-0006 DTGNR 12-3B 55-921-002 $44.66 FeATureS:
1.00 1.00 1.25 6.00 1.35 TNM_ 43_ DTGN/DTJN 1-0008 DTGNR 16-4D 55-921-004 54.03 • Each insert has (6) cutting edges.
1.25 1.25 1.50 6.00 1.35 TNM_ 43_ DTGN/DTJN 1-0008 DTGNR 20-4D 55-921-006 62.49 • Accepts any TNM_ insert.
DTJNR Turning & Facing Toolholders
Accepts TN_ _ Inserts
APPLICATIONS:
• For contouring, profiling and facing.
♦ Insert Not Included.
SHANk SHANk OveRALL OveRALL HeAD USe GAGe PART SeT MODeL ORDeR PRICe
WIDTH HeIGHT HeIGHT LeNGTH LeNGTH INSeRT # MODeL # # # eACH Inserts
0.75" 0.75" 1.00" 4.50" 1.00" TNM_ 32_ DTGN/DTJN 1-0006 DTJNR 12-3B 55-921-008 $44.66 Pages 619-620
1.00 1.00 1.25 6.00 1.08 TNM_ 32_ DTGN/DTJN 1-0006 DTJNR 16-3D 55-921-010 49.92 FeATureS:
1.00 1.00 1.25 6.00 1.28 TNM_ 43_ DTGN/DTJN 1-0008 DTJNR 16-4D 55-921-012 54.03 • Each insert has (6) cutting edges.
1.25 1.25 1.50 6.00 1.28 TNM_ 43_ DTGN/DTJN 1-0008 DTJNR 20-4D 55-921-014 63.43 • Accepts any TNM_ insert.
DSDNN Turning & Facing Toolholders
Accepts SNM_ Inserts • Neutral
APPLICATIONS:
• For turning, facing and chamfering.
SHANk SHANk OveRALL OveRALL HeAD USe GAGe PART SeT MODeL ORDeR PRICe ♦ Insert Not Included.
WIDTH HeIGHT HeIGHT LeNGTH LeNGTH INSeRT # MODeL # # # eACH
0.75" 0.75" 1.00" 4.50" 1.55" SNM_ 43_ DSDNN 3-0016 DSDNN 12-4B 55-921-016 $46.41 Inserts
1.00 1.00 1.25 6.00 1.47 SNM_ 43_ DSDNN 3-0016 DSDNN 16-4D 55-921-018 51.68 Page 618
1.00 1.00 1.25 6.00 1.67 SNM_ 54_ DSDNN 3-0020 DSDNN 16-5D 55-921-020 54.03 FeATureS:
DSDNN 3-0018 • Each insert has (8) cutting edges.
1.25 1.25 1.50 6.00 1.98 SNM_ 64_ DSDNN 20-6D 55-921-022 66.58
PART SET • Accepts any SNM_ insert.
Part Sets For Toolholders

FOR TOOLHOLDeR MODeL ORDeR PRICe
SeRIeS # # # PeR SeT
DTGNR 12-3B,DTJNR 12-3B, 16-3D DTGN/DTJN 1-0006 55-921-102 $11.17
DTGNR 16-4D, 20-4D, DTGN/DTJN 1-0008 55-921-104 13.51
DTJNR 16-4D, 20-4D
DSDNN 12-4B, 16-4D DSDNN 3-0016 55-921-106 15.26 ClamP ShIm INSeRT ClIP SCRew
DSDNN 16-5D DSDNN 3-0020 55-921-107 13.02
DSDNN 20-6D DSDNN 3-0018 55-921-108 16.19
DCLNR 12-4B, 16-4D,20-4D DCLNR 0-0006 55-921-110 11.17 FeATureS:
DCLNR 16-5D DCLNR 0-0008 55-921-112 13.51 • Includes all parts pictured: clamp, shim, insert clip and screw
DCLNR 20-6D DCLNR 0-0010 55-921-114 15.26 • Set ensures having appropriate part on hand when needed.
