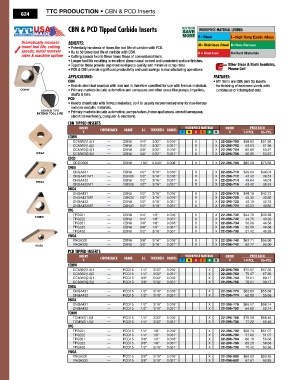

Page 626 - All Industrial Tool Supply | General Catalog

TTC PRODUCTION • CBN & PCD Inserts
624

CBN & PCD Tipped Carbide Inserts

Dramatically increase Benefits:
insert tool life, cutting • Potentially hundreds of times the tool life of carbide with PCD.
speeds, metal removal • Up to 50 times tool life of carbide with CBN.
rates & machine uptime • Cutting speeds two to three times those of conventional tools.
• Longer tool life resulting in excellent dimensional control and consistent surface finishes.
• Together these provide improved workpiece quality and minimize scrap rates. Other Sizes & Radii Available,
• PCD & CBN provide significant productivity and cost savings in manufacturing operations. Please Call
APPLiCAtiOns: feAtures:
CBN • MT items are CBN mini tip inserts
• Resists chemical reaction with iron and is therefore specified for use with ferrous materials. for finishing of hardened steels with
CCMW • Primary markets include automotive and aerospace and other areas like pumps, impellers, continuous or interrupted cuts.
shafts & rolls.
PCD
• Reacts chemically with ferrous materials, so it is usually recommended only for non-ferrous
and non-metallic materials.
CoATeD Tips
exTeND Tool life • Primary markets include automotive, pumps/valves, home appliances, aircraft/aerospace,
electrical machinery, computer & electronic.
CBN TIPPeD INserTs
INserT ChIPBreaker GraDe I.C. ThICkNess raDIus WorkPIeCe MaTerIal orDer _____PrICe eaCh_____
# P M k s N h # 1-9 PCs. 10+ PCs.
CCMW
CCMW2(1.5)1 — CBN8 1/4" 3/32" 0.016" X X 22-296-700 $58.63 $51.98
CCMW2(1.5)2 — CBN8 1/4" 3/32" 0.031" X X 22-296-702 58.63 51.98
CCMW3(2.5)1 — CBN8 3/8" 5/32" 0.016" X X 22-296-704 60.86 53.97
CNGA CCMW3(2.5)2 — CBN8 3/8" 5/32" 0.031" X X 22-296-706 60.86 53.97
CDCD
CDCD505 — CBN8 .156" 0.040" 0.008" X X 22-296-708 $85.29 $75.63
CNGa
CNGA431 — CBN8 1/2" 3/16" 0.016" X X 22-296-710 $49.64 $44.01
CNGA431MT — CBN30 1/2" 3/16" 0.016" X X 22-296-712 43.42 38.51
CNGA432 — CBN8 1/2" 3/16" 0.031" X X 22-296-714 49.64 44.01
DNGA
CNGA432MT — CBN30 1/2" 3/16" 0.031" X X 22-296-716 43.42 38.51
DNGa
DNGA431 — CBN8 1/2" 3/16" 0.016" X X 22-296-718 $48.19 $42.73
DNGA431MT — CBN30 1/2" 3/16" 0.016" X X 22-296-720 45.35 40.82
DNGA432 — CBN8 1/2" 3/16" 0.031" X X 22-296-722 48.19 42.73
DNGA432MT — CBN30 1/2" 3/16" 0.031" X X 22-296-724 46.03 40.82
TPG
TPG221 — CBN8 1/4" 1/8" 0.016" X X 22-296-730 $44.76 $40.28
TCMW
TPG222 — CBN8 1/4" 1/8" 0.031" X X 22-296-732 44.76 40.28
TPG321 — CBN8 3/8" 1/8" 0.016" X X 22-296-734 50.06 44.38
TPG322 — CBN8 3/8" 1/8" 0.031" X X 22-296-736 50.06 44.38
TPG432 — CBN8 1/2" 3/16" 0.031" X X 22-296-738 51.42 46.28
VNGa
VNGA331 — CBN8 3/8" 3/16" 0.016" X X 22-296-740 $63.71 $56.50
VNGA332 — CBN8 3/8" 3/16" 0.031" X X 22-296-742 62.77 56.50
VNGA
PCD TIPPeD INserTs
INserT ChIPBreaker GraDe I.C. ThICkNess raDIus WorkPIeCe MaTerIal orDer _____PrICe eaCh_____
# P M k s N h # 1-9 PCs. 10+ PCs.
CCMW
CCMW2(1.5)1 — PCD15 1/4" 3/32" 0.016" X 22-296-760 $75.07 $67.56
CCMW2(1.5)2 — PCD15 1/4" 3/32" 0.031" X 22-296-762 75.07 67.56
CCMW3(2.5)1 — PCD15 3/8" 5/32" 0.016" X 22-296-764 78.01 69.17
CCMW3(2.5)2 — PCD15 3/8" 5/32" 0.031" X 22-296-766 78.01 69.17
CNGa
CNGA431 — PCD15 1/2" 3/16" 0.016" X 22-296-770 $62.80 $55.68
CNGA432 — PCD15 1/2" 3/16" 0.031" X 22-296-774 62.80 55.68
DNGa
DNGA431 — PCD15 1/2" 3/16" 0.016" X 22-296-778 $65.57 $58.14
DNGA432 — PCD15 1/2" 3/16" 0.031" X 22-296-782 64.60 58.14
TCMW
TCMW2(1.5)1 — PCD15 1/4" 3/32" 0.016" X 22-296-786 $76.08 $68.46
TCMW2(1.5)2 — PCD15 1/4" 3/32" 0.031" X 22-296-788 77.22 68.46
TPG
TPG221 — PCD15 1/4" 1/8" 0.016" X 22-296-790 $56.74 $51.07
TPG222 — PCD15 1/4" 1/8" 0.031" X 22-296-792 57.60 51.07
TPG321 — PCD15 3/8" 1/8" 0.016" X 22-296-794 66.18 58.68
TPG322 — PCD15 3/8" 1/8" 0.031" X 22-296-796 65.20 58.68
TPG432 — PCD15 1/2" 3/16" 0.031" X 22-296-798 70.42 63.38
VNGa
VNGA331 — PCD15 3/8" 3/16" 0.016" X 22-296-800 $68.62 $60.85
VNGA332 — PCD15 3/8" 3/16" 0.031" X 22-296-802 67.61 60.85
