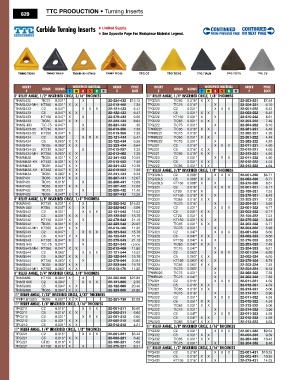

Page 622 - All Industrial Tool Supply | General Catalog

TTC PRODUCTION • Turning Inserts
620

Carbide Turning Inserts ♦ Limited Supply.
♦ See Opposite Page For Workpiece Material Legend.

TNMG TIC65 TNMG TIALN TNMM-KH KT450 TNMP TIC65 TPG C5 TPG TIC65 TPG TIALN TPG TIC75 TPU C5

InserT Grade radIus WorkpIeCe MaTerIal order prICe InserT Grade radIus WorkpIeCe MaTerIal order prICe
# p M k s n h # eaCh # p M k s n h # eaCh
0° relIef anGle, 1/2" InsCrIbed CIrCle, 3/16" ThICkness 11° relIef anGle, 1/4" InsCrIbed CIrCle, 1/8" ThICkness
TNMG432 TIC75 0.031" X 22-224-432 $12.12 TPG221 TIC65 0.016" X X 22-203-221 $7.49
TNMG432-MH KT350 0.031" X X 22-013-460 7.35 TPG221 TIC75 0.016" X 22-204-221 6.10
TNMG433 C2 0.047" X X X 22-121-433 6.47 TPG222 C2 0.031" X X X 22-001-222 6.42
TNMG433 C5 0.047" X X 22-122-433 6.47 TPG222 C5 0.031" X X 22-002-222 6.42
TNMG433 KT150 0.047" X X 22-279-433 9.56 TPG222 KT150 0.031" X X 22-275-222 8.61
TNMG433 TIC65 0.047" X X 22-223-433 8.64 TPG222 TIC65 0.031" X X 22-203-222 7.49
TNMG 433 TiC-75 0.047" X 22-224-433 .30 TPG222 TIC75 0.031" X 22-204-222 6.10
TNMG433-55 KT210 0.047" X 22-013-256 7.35 TPMR221 TIC65 0.016" X X 22-261-221 4.49
TNMG433-55 KT250 0.047" X 22-013-358 7.35 TPMR221 TIC75 0.016" X 22-262-221 4.20
TNMG434 C2 0.063" X X X 22-121-434 6.47 TPMR222 TIC65 0.031" X X 22-261-222 4.49
TNMG434 C5 0.063" X X 22-122-434 6.56 TPMR222 TIC75 0.031" X 22-262-222 4.20
TNMG434 TIC65 0.063" X X 22-223-434 8.64 TPU221 C2 0.016" X X X 22-011-221 4.60
TNMG434-55 KT210 0.063" X 22-013-257 7.35 TPU221 C5 0.016" X X 22-012-221 4.60
TNMG434-MH KT350 0.063" X X 22-013-462 7.35 TPU221 TIC65 0.016" X X 22-213-221 4.94
TNMM432 TIC65 0.031" X X 22-241-432 10.55 TPU222 C2 0.031" X X X 22-011-222 4.60
TNMM432-KH KT450 0.031" X X 22-013-552 7.35 TPU222 C5 0.031" X X 22-012-222 4.53
TNMM433 TIC65 0.047" X X 22-241-433 10.39 TPU222 TIC65 0.031" X X 22-213-222 4.94
TNMM433-KH KT450 0.047" X X 22-013-553 7.35 11° relIef anGle, 3/8" InsCrIbed CIrCle, 1/8" ThICkness
TNMM434 TIC65 0.063" X X 22-241-434 6.23 TPG320.5 C2 0.008" X X X 22-001-320 $6.71
TNMP431 TIC65 0.016" X X 22-207-431 12.07 TPG320.5 C5 0.008" X X 22-002-320 6.71
TNMP431 TIC75 0.016" X 22-208-431 12.05 TPG320.5 KT150 0.008" X X 22-275-320 8.61
TNMP432 TIC65 0.031" X X 22-207-432 12.05 TPG321 C2 0.016" X X X 22-001-321 6.17
TNMP432 TIC75 0.031" X 22-208-432 11.45 TPG321 CT20 0.016" X 22-100-321 7.53
TNMP433 TIC65 0.047" X X 22-207-433 12.26 TPG321 KT150 0.016" X X 22-275-321 8.49
0° relIef anGle, 5/8" InsCrIbed CIrCle, 1/4" ThICkness TPG321 TIC65 0.016" X X 22-203-321 7.23
TNMA542 KT150 0.031" X X 22-282-542 $16.83 TPG321 TIC75 0.016" X 22-204-321 5.98
TNMA 543 KTI50 0.047" X X 22-282-543 2.09 TPG322 C2 0.031" X X X 22-001-322 6.17
TNMG542 C2 0.031" X X X 22-121-542 15.52 TPG322 C5 0.031" X X 22-002-322 6.17
TNMG542 C5 0.031" X X 22-122-542 15.76 TPG322 CT20 0.031" X 22-100-322 7.53
TNMG542 KT150 0.031" X X 22-279-542 21.15 TPG322 KT150 0.031" X X 22-275-322 8.49
TNMG542 TIC65 0.031" X X 22-223-542 20.07 TPG322 TIC65 0.031" X X 22-203-322 6.77
TNMG542-MH KT350 0.031" X X 22-013-468 11.80 TPG322 TIC75 0.031" X 22-204-322 5.98
TNMG543 C2 0.047" X X X 22-121-543 15.76 TPG323 C2 0.047" X X X 22-001-323 6.60
TNMG543 C5 0.047" X X 22-122-543 15.76 TPG323 C5 0.047" X X 22-002-323 6.60
TNMG543 KT150 0.047" X X 22-279-543 21.15 TPG323 KT150 0.047" X X 22-275-323 8.65
TNMG 543 TiC-75 0.047" X 22-224-543 <price TPG323 TIC65 0.047" X X 22-203-323 7.49
TNMG543-MH KT350 0.047" X X 22-013-469 11.80 TPG323 TIC75 0.047" X 22-204-323 6.21
TNMG544 C2 0.063" X X X 22-121-544 15.52 TPG324 C2 0.063" X X X 22-001-324 6.60
TNMG544 C5 0.063" X X 22-122-544 15.76 TPG324 C5 0.063" X X 22-002-324 6.60
TNMG544 KT150 0.063" X X 22-279-544 20.84 TPG324 KT150 0.063" X X 22-275-324 8.79
TNMG544 TIC65 0.063" X X 22-223-544 19.78 TPG324 TIC65 0.063" X X 22-203-324 7.49
TNMG544-MH KT350 0.063" X X 22-013-470 11.80 TPG324 TIC75 0.063" X 22-204-324 6.12
0° relIef anGle, 3/4" InsCrIbed CIrCle, 3/8" ThICkness TPMR322 TIC75 0.031" X 22-262-322 7.39
TNMA666 KT150 0.094" X X 22-282-666 $25.88 TPMR323 TIC75 0.047" X 22-262-323 7.39
TNMG 666 C2 0.094" X X X 22-121-666 2.50 TPU321 C2 0.016" X X X 22-011-321 4.59
TNMG666 C5 0.094" X X 22-122-666 20.46 TPU321 C5 0.016" X X 22-012-321 4.59
TNMG666 TIC65 0.094" X X 22-223-666 24.80 TPU321 TIC65 0.016" X X 22-213-321 5.06
11° relIef anGle, 7/32" InsCrIbed CIrCle, 3/32" ThICkness TPU321 TIC75 0.016" X 22-214-321 3.96
TPMR1.8(1.5)0.5 TIC65 0.007" X X 22-261-730 $7.03 TPU322 C2 0.031" X X X X X 22-011-322 4.59
22-012-322

0.031"
C5
4.59
TPU322
11° relIef anGle, 1/4" InsCrIbed CIrCle, 3/16" ThICkness TPU322 TIC65 0.031" X X 22-213-322 5.06
TPG211 C2 0.016" X X X 22-001-211 $6.60 TPU322 TIC75 0.031" X 22-214-322 3.96
TPG211 C5 0.016" X X 22-002-211 6.60 TPU323 C2 0.047" X X X 22-011-323 4.59
TPG212 C2 0.031" X X X 22-001-212 6.60 TPU323 C5 0.047" X X 22-012-323 4.59
TPG212 C5 0.031" X X 22-002-212 6.60 TPU323 TIC65 0.047" X X 22-213-323 5.68
TPU212 C5 0.031" X X 22-012-212 4.21 11° relIef anGle, 3/8" InsCrIbed CIrCle, 3/16" ThICkness
11° relIef anGle, 1/4" InsCrIbed CIrCle, 1/8" ThICkness TPG332 C2 0.031" X X X 22-001-332 $9.54
TPG221 C2 0.016" X X X 22-001-221 $6.42 TPG332 C5 0.031" X X 22-002-332 9.39
TPG221 C5 0.016" X X 22-002-221 6.42 TPG332 TIC65 0.031" X X 22-203-332 10.43
TPG221 CT20 0.016" X 22-100-221 5.69 TPG332 TIC75 0.031" X 22-204-332 8.46
TPG221 KT150 0.016" X X 22-275-221 8.21 11° relIef anGle, 1/2" InsCrIbed CIrCle, 3/16" ThICkness
TPG431 C2 0.016" X X X 22-001-431 $10.35
TPG431 C5 0.016" X X 22-002-431 10.35
TPG431 KT150 0.016" X X 22-275-431 14.33
