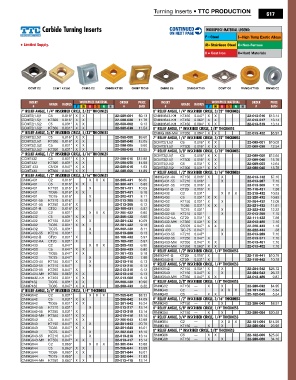

Page 619 - All Industrial Tool Supply | General Catalog

Turning Inserts • TTC PRODUCTION
617

Carbide Turning Inserts

♦ Limited Supply.

CCMT C2 CCMT KT300 CNMG C2 CNMG KT150 CNMP TIC65 DNMG C5 DNMG KT150 DCMT C5 RNMG KT150 RNMG C2

InserT Grade radIus WorkpIeCe MaTerIal order prICe InserT Grade radIus WorkpIeCe MaTerIal order prICe
# p M k s n h # eaCh # p M k s n h # eaCh
7° relIef anGle, 1/4" InsCrIbed CIrCle, 3/32" ThICkness 0° relIef anGle, 1/4" InsCrIbed CIrCle, 3/32" ThICkness
CCMT2(1.5)1 C5 0.016" X X 22-088-001 $9.13 CNMM643-KH KT450 0.047" X X 22-013-516 $13.14
CCMT2(1.5)1 KT300 0.016" X X 22-088-038 11.76 CNMM644-KH KT450 0.063" X X 22-013-517 13.14
CCMT2(1.5)2 C5 0.031" X X 22-088-002 9.13 CNMM646-KH KT450 0.094" X X 22-013-519 13.14
CCMT2(1.5)2 KT300 0.031" X X 22-088-039 11.54 0° relIef anGle, 1" InsCrIbed CIrCle, 3/8" ThICkness
7° relIef anGle, 3/8" InsCrIbed CIrCle, 5/32" ThICkness CNMG 866-MH KT350 0.094" X X 22-013-422 $5.97
CCMT3(2.5)1 C5 0.016" X X 22-088-000 $9.60 7° relIef anGle, 1/4" InsCrIbed CIrCle, 3/32" ThICkness
CCMT3(2.5)1 KT300 0.016" X X 22-088-040 12.05 DCMT2(1.5)1 C5 0.016" X X 22-089-001 $10.02
CCMT3(2.5)2 C5 0.031" X X 22-088-005 9.60 DCMT2(1.5)1 KT300 0.016" X X 22-089-038 12.54
CCMT3(2.5)2 KT300 0.031" X X 22-088-045 12.05 7° relIef anGle, 3/8" InsCrIbed CIrCle, 5/32" ThICkness
7° relIef anGle, 1/2" InsCrIbed CIrCle, 3/16" ThICkness DCMT3(2.5)1 C5 0.016" X X 22-089-000 $12.64
CCMT432 C5 0.031" X X 22-088-010 $12.88 DCMT3(2.5)1 KT300 0.016" X X 22-089-040 15.78
CCMT432 KT300 0.031" X X 22-088-050 14.89 DCMT3(2.5)2 C5 0.031" X X 22-089-005 12.64
CCMT 433 C5/C6 0.047" X X 22-088-015 1.63 DCMT3(2.5)2 KT300 0.031" X X 22-089-045 15.78
CCMT433 KT300 0.047" X X 22-088-055 14.89 0° relIef anGle, 1/2" InsCrIbed CIrCle, 3/16" ThICkness
0° relIef anGle, 1/2" InsCrIbed CIrCle, 3/16" ThICkness DNMG431-44 KT150 0.016" X X 22-013-142 $7.10
CNMG431 C2 0.016" X X X 22-205-431 $6.80 DNMG431-55 KT210 0.016" X 22-013-267 7.10
CNMG431 C5 0.016" X X 22-206-431 6.80 DNMG431-55 KT250 0.016" X 22-013-369 7.10
CNMG431 KT150 0.016" X X 22-281-431 10.09 DNMG431-B CT20 0.016" X 22-110-431 7.88
CNMG431 TIC65 0.016" X X 22-201-431 9.18 DNMG432 C2 0.031" X X X 22-219-432 10.83
CNMG431 TIC75 0.016" X 22-202-431 8.11 DNMG432 C5 0.031" X X 22-220-432 10.83
CNMG431-55 KT210 0.016" X 22-013-208 6.13 DNMG432 KT150 0.031" X X 22-284-432 12.09
CNMG431-55 KT250 0.016" X 22-013-308 6.13 DNMG432 TIC65 0.031" X X 22-221-432 11.61
CNMG431-B CT20 0.016" X 22-108-431 5.97 DNMG432 TIC75 0.031" X 22-222-432 12.22
CNMG432 C2 0.031" X X X 22-205-432 6.80 DNMG432-55 KT210 0.031" X 22-013-268 7.10
CNMG432 C5 0.031" X X 22-206-432 6.80 DNMG432-KA CT20 0.031" X 22-111-432 7.88
CNMG432 KT150 0.031" X X 22-281-432 10.09 DNMG432-MH KT350 0.031" X X 22-013-480 7.10
CNMG432 TIC65 0.031" X X 22-201-432 9.18 DNMG 433 C5/C6 0.047" X X 22-220-433 1.16
CNMG432 TIC75 0.031" X 22-202-432 8.11 DNMG 433 TiC-75 0.047" X 22-222-433 .38
CNMG432-55 KT210 0.031" X 22-013-209 6.13 DNMG433-55 KT210 0.047" X 22-013-269 7.10
CNMG432-B CT20 0.031" X 22-108-432 5.97 DNMG433-55 KT250 0.047" X 22-013-371 7.10
CNMG432-KA CT20 0.031" X 22-109-432 5.97 DNMG433-MH KT350 0.047" X X 22-013-481 7.10
CNMG433 C2 0.047" X X X 22-205-433 6.80 DNMG434-MH KT350 0.063" X X 22-013-482 7.10
CNMG433 C5 0.047" X X 22-206-433 6.80 0° relIef anGle, 1/2" InsCrIbed CIrCle, 1/4" ThICkness
CNMG433 TIC65 0.047" X X 22-201-433 9.18 DNMG441-B CT20 0.016" X 22-110-441 $10.18
CNMG433 TIC75 0.047" X 22-202-433 7.98 DNMG442-B CT20 0.031" X 22-110-442 10.18
CNMG433-44 KT150 0.047" X X 22-013-110 6.13
CNMG433-55 KT210 0.047" X 22-013-210 6.13 0° relIef anGle, 5/8" InsCrIbed CIrCle, 1/4" ThICkness
CNMG433-55 KT250 0.047" X 22-013-310 6.13 DNMG542 KT150 0.031" X X 22-284-542 $26.72
CNMG434-MH KT350 0.063" X X 22-013-410 6.13 DNMG543 KT150 0.047" X X 22-284-543 26.72
CNMM432-KH KT450 0.031" X X 22-013-508 6.13 DNMG543-MH KT350 0.047" X X 22-013-486 9.87
CNMP432 TIC65 0.031" X X 22-209-432 10.90 0° relIef anGle, 3/8" InsCrIbed CIrCle, 1/8" ThICkness
CNMP433 TIC65 0.047" X X 22-209-433 6.32 RNMG32 KT150 — X X 22-286-032 $4.95
0° relIef anGle, 3/4" InsCrIbed CIrCle, 1/4" ThICkness RNMG43 C2 — X X X 22-181-043 5.34
CNMG642 C2 0.031" X X X 22-205-642 $8.33 RNMG43 C5 — X X 22-182-043 5.34
CNMG642 C5 0.031" X X 22-206-642 14.09 0° relIef anGle, 1/2" InsCrIbed CIrCle, 3/16" ThICkness
CNMG642 TIC65 0.031" X X 22-201-642 16.24 RNMG43 KT150 — X X 22-286-043 $8.37
CNMG642-55 KT210 0.031" X 22-013-217 13.14 0° relIef anGle, 5/8" InsCrIbed CIrCle, 1/4" ThICkness
CNMG642-55 KT250 0.031" X 22-013-319 13.14 RNMG54 KT150 — X X 22-286-054 $20.48
CNMG642-MH KT350 0.031" X X 22-013-416 13.14 0° relIef anGle, 3/4" InsCrIbed CIrCle, 1/4" ThICkness
CNMG643 C5 0.047" X X 22-206-643 13.88 RNMG64 C2 — X X X 22-181-064 $14.55
CNMG643 KT150 0.047" X X 22-281-643 20.76

X
KT150
RNMG 64
X

—
CNMG643 TIC65 0.047" X X 22-201-643 16.01 0° relIef anGle, 1" InsCrIbed CIrCle, 3/8" ThICkness 22-286-064 23.92
CNMG643 TIC75 0.047" X 22-202-643 18.10
CNMG643-55 KT210 0.047" X 22-013-218 13.14 RNMG86 C5 — X X 22-182-086 $25.30
CNMG643-MH KT350 0.047" X X 22-013-417 13.14 RNMG86 KT150 — X X 22-286-086 34.10
CNMG644 C2 0.063" X X X 22-205-644 13.88
CNMG644 C5 0.063" X X 22-206-644 13.88
CNMG644 TIC65 0.063" X X 22-201-644 16.01
CNMG644 TIC75 0.063" X 22-202-644 17.83
CNMG644-MH KT350 0.063" X X 22-013-418 13.14
