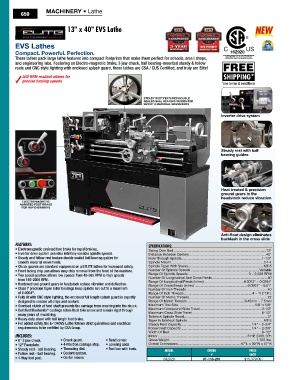

Page 652 - All Industrial Tool Supply | General Catalog

MACHINERY • Lathe
650

13" x 40" EVS Lathe

EVS Lathes
Compact. Powerful. Perfection.
These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops,
and engineering labs. Featuring an Electro-magnetic brake, 3 jaw chuck, ball bearing-mounted steady & follow
rests and CNC style lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!
LED RPM readout allows for
precise turning speeds

STEADY REST FEATURES DOUBLE
SEALED BALL BEARING GUIDES FOR
SMOOTH MATERIAL MOVEMENTS
Inverter drive system

Steady rest with ball
bearing guides

Heat treated & precision
ground gears in the
headstock reduce vibration
ELECTROMAGNETIC
ASSISTED FOOT BRAKE
FOR RAPID BRAKING

Anti-float design eliminates
backlash in the cross slide
Features: SpEcificationS:
• Electromagnetic assisted foot brake for rapid braking. Swing Over Bed ..................................................................................................13"
• Inverter drive system provides infinitely variable spindle speeds. Distance Between Centers ..................................................................................40"
• Steady and follow rest feature double sealed ball bearing guides for Hole Through Spindle .....................................................................................1-1/2"
smooth material movements. Spindle Mount .................................................................................................. D1-4
• Chuck guards are standard equipment on all ELITE lathes for increased safety. Spindle Taper With Sleeve ................................................................................MT-5
• Front facing chip pan allows easy chip removal from the front of the machine. Number Of Spindle Speeds ........................................................................ Variable
• Two speed gearbox allows low speeds from 40-365 RPM to high speeds Range Of Spindle Speeds ................................................................0 ~ 2,200 RPM
from 165-2000 RPM. Number Of Longitudinal And Cross Feeds ..........................................................80
• Hardened and ground gears in headstock reduce vibration and deflection. Range Of Longitudinal Feeds (in/rev) ..........................................0.0012" ~ 0.0294"
Range Of Cross Feeds (in/rev) ........................................................0.0003" ~ 0.01"
• Class 7 precision taper roller bearings keep spindle run out to a maximum Number Of Inch Threads ......................................................................................40
of 0.0004". Range Of Inch Threads.........................................................................4 ~ 112 T.P.I.
• Fully lit with CNC style lighting, the enclosed full length splash guard is expertly Number Of Metric Threads ...................................................................................22
designed to contain all chips and coolant. Range Of Metric Threads .............................................................0.45mm ~ 7.5mm
• Overload clutch at feed shaft prevents the carriage from crashing into the chuck. Maximum Tool Size .................................................................................5/8" x 5/8"
• Certified Meehanite castings retain their tolerances and remain rigid through Maximum Compound Slide Travel .................................................................3-1/2"
®
many years of machining. Maximum Cross Slide Travel ..........................................................................6-1/2"
• Heavy-duty stand with full length foot brake. Tailstock Spindle Travel .........................................................................................5"
Taper In Tailstock Spindle .................................................................................MT-3
• For added safety, the E-1340VS Lathe follows strict guidelines and electrical Steady Rest Capacity ..........................................................................1/4" ~ 2-3/4"
requirements to be certified by CSA Group. Follow Rest Capacity ..........................................................................1/4" ~ 2-3/8"
Width Of Bed ..................................................................................................8-1/2"
Includes: Motor ...............................................................................................3 HP, 230V, 3Ph
• 6" 3 jaw chuck. • Chuck guard. • Dead center. Gross Weight ............................................................................................ 1,700 lbs.
• 12" Faceplate. • 4-Position carriage stop. • Leveling pads. Overall Dimensions ...................................................................67"L x 30"W x 57"H
• Steady rest - ball bearing. • Threading dial. • Tool box with tools. ModEL ordEr pricE
• Follow rest - ball bearing. • Coolant system. # # Each
• 4-Way tool post. • Center sleeve. 892020 87-118-201 $15,379.00
