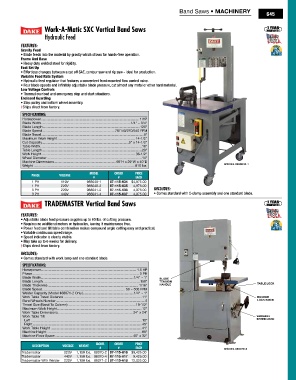

P. 647
Band Saws • MACHINERY
645
Work-A-Matic SXC Vertical Band Saws
Hydraulic Feed
Features:
Gravity Feed
• Blade feeds into the material by gravity which allows for hands-free operation.
Frame And Base
• Heavy duty welded steel for rigidity.
Fast Set Up
• Effortless changes between a cut off SAE, contour saw and rip saw - ideal for production.
Variable Feed Rate System
• Hydraulic feed regulator that features a convenient front mounted flow control valve.
• Four blade speeds and infinitely adjustable blade pressure, cut almost any metal or other hard material.
Low Voltage Controls
• Thermal overload and emergency stop and start situations.
Enclosed Guarding
• Step pulley and bottom wheel assembly.
†Ships direct from factory.
SpeCifiCAtionS:
Horsepower ........................................................................................................ 1 HP
Blade Width ...............................................................................................1/4" ~ 3/4"
Blade Length .......................................................................................................120"
Blade Speed .............................................................................70/140/270/540 FPM
Blade Travel .............................................................................................................9"
Maximum Work Height ...................................................................................14-1/2"
Cut Capacity ............................................................................................9" x 14-1/2"
Table Width ............................................................................................................18"
Table Length ..........................................................................................................29"
Work Height ....................................................................................................36-1/2"
Wheel Diameter .....................................................................................................14"
Machine Dimensions ................................................................. 66"H x 29"W x 40"D ModEl #988040-1
Weight ........................................................................................................... 810 lbs.
MoDel oRDeR pRiCe
phASe VoltAge
# # eACh
1 PH 110V 988040-1 87-115-634 $4,975.00
1 PH 220V 988040-2 87-115-635 4,975.00
3 PH 220V 988041-2 87-115-636 4,975.00 Includes:
3 PH 440V 988041-4 87-115-637 4,975.00 • Comes standard with C-clamp assembly and one standard blade.
tRADeMASteR Vertical Band Saws
Features:
• Adjustable blade feed pressure supplies up to 60 lbs. of cutting pressure.
• Requires no additional motors or hydraulics, leaving it maintenance free.
• Power feed and tilt table combination makes compound angle cutting easy and practical.
• Variable continuous speed range.
• Speed indicator is clearly visible.
• May take up to 6 weeks for delivery.
†Ships direct from factory.
Includes:
• Comes standard with work lamp and one standard blade.
SpeCifiCAtionS:
Horsepower ..................................................................................................... 1.5 HP
Phase .................................................................................................................. 3 PH
Blade Width ..................................................................................................1/4" ~ 1" BLADE
Blade Length .......................................................................................................150" TENSION TABLE LOCK
Blade Thickness ................................................................................................ 1/16" HANDLE
Blade Speed ........................................................................................ 50 ~ 500 FPM
Welder Capacity (Model #88071-2 Only)......................................................1/4" ~ 1"
Work Table Travel Distance ...................................................................................11" ROCKER
Band Wheels Number .............................................................................................. 2 LOCK KNOB
Throat Size (Band To Column) ........................................................................19-1/2"
Maximum Work Height ..........................................................................................12"
Work Table Dimensions ............................................................................... 24" x 24"
Work Table Tilt VARIABLE
Left ......................................................................................................................10° SPEED LOCK
Right ....................................................................................................................45°
Work Table Height .................................................................................................41"
Machine Height .....................................................................................................80"
Machine Floor Space .................................................................................. 40" x 32"
MoDel oRDeR pRiCe
DeSCRiption VoltAge Weight
# # eACh ModEl #88070-2
Trademaster 220V 1,150 lbs. 88070-2 87-115-616 $9,425.00
Trademaster 440V 1,150 lbs. 88070-4 87-115-617 9,425.00
Trademaster With Welder 220V 1,190 lbs. 88071-2 87-115-618 12,025.00
