MACHINERY • Band Saws
642

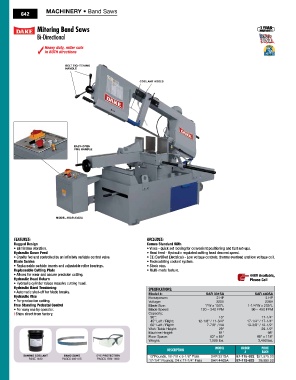

Mitering Band Saws
Bi-Directional

Heavy duty, miter cuts
in BOTH directions

BELT TIGHTENING
HANDLE

COOLANT HOSES

EASY-OPEN
VISE HANDLE

Model #SAR 333SA

Features: Includes:
Rugged Design Comes Standard With
• Eliminates vibration. • Vises - quick set locking for convenient positioning and fast set-ups.
Hydraulic Down Feed • Head feed - Hydraulic regulated cutting head descent speed.
• Gravity fed and controlled by an infinitely variable control valve. • CE (Certified Electrical) - Low voltage controls, thermo overload and low voltage coil.
Blade Guides • Recirculating coolant system.
• Replaceable carbide inserts and adjustable roller bearings. • Stock stop.
Replaceable Cutting Plate • Multi-mode feature.
• Allows for wear and assure precision cutting. 440V Available,
Hydraulic Head Return Please Call
• Hydraulic cylinder raises massive cutting head.
Hydraulic Band Tensioning SpecificationS:
• Automatic shut-off for blade breaks. Model #: SAR 331SA SAR 440SA
Hydraulic Vise Horsepower: 2 HP 3 HP
• For production cutting. Voltage: 220V 220V
Free Standing Pedestal Control Blade Size: 1"W x 150"L 1-1/4"W x 205"L
• For easy use by operator. Blade Speed: 120 ~ 240 FPM 90 ~ 450 FPM
†Ships direct from factory. Capacity:
90°: 13" 17-1/4"
45° Left / Right: 12-1/8" / 11-3/4" 17-1/4" / 17-1/4"
60° Left / Right: 7-7/8" / NA 13-3/8" / 12-1/2"
Work Table Height: 29" 29-1/2"
Machine Height: 81" 98"
Floor Space: 63" x 85" 98" x 118"
Weight: 1,585 lbs. 3,460 lbs.
MoDel orDer price
DeScription
# # each
SAwing coolAnt bAnd SAwS eye pRotection 13"Rounds, 18-7/8 x 5-1/8" Flats SAR 331SA 87-115-632 $21,575.00
PAGE 1480 PAGES 402-415 PAGES 1594-1600
17-1/4" Rounds, 24 x 17-1/4" Flats SAR 440SA 87-115-633 29,995.00
