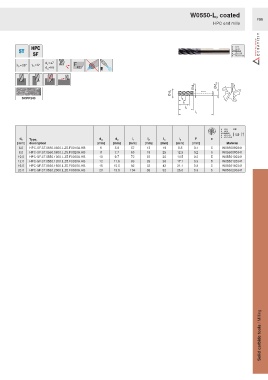

Page 1083 - Ceratizit Catalog

W0550-L, coated
F86
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPP240 l 4
l 2
l 3
l 1

HB
d 1 Type, d A d 3 l 1 l 2 l 3 l 4 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm] Material
6.0 HPC-SF.ST.0550.0600.L.Z5.F0010A.HB 6 5.8 57 13 19 8.5 0.1 5 W0550060341
8.0 HPC-SF.ST.0550.0800.L.Z5.F0020A.HB 8 7.7 63 19 25 12.5 0.2 5 W0550080341
10.0 HPC-SF.ST.0550.1000.L.Z5.F0020A.HB 10 9.7 72 22 30 14.5 0.2 5 W0550100341
12.0 HPC-SF.ST.0550.1200.L.Z5.F0030A.HB 12 11.6 83 26 36 17.1 0.3 5 W0550120341
16.0 HPC-SF.ST.0550.1600.L.Z5.F0030A.HB 16 15.5 92 32 42 21.1 0.3 5 W0550160341
20.0 HPC-SF.ST.0550.2000.L.Z5.F0030A.HB 20 19.5 104 38 52 25.0 0.3 5 W0550200341

Solid carbide tools / Milling
