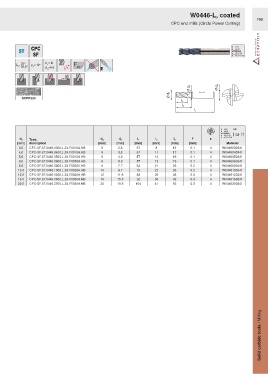

Page 1085 - Ceratizit Catalog

W0446-L, coated
F88
CPC end mills (Circle Power Cutting)

Ø d 3 Ø d A
Ø d 1
SCPP220
l 2
l 3
l 1

HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
3.0 CPC-SF.ST.0446.0300.L.Z4.F0010A.HB 6 2.8 57 8 13 0.1 4 W0446030341
4.0 CPC-SF.ST.0446.0400.L.Z4.F0010A.HB 6 3.8 57 11 17 0.1 4 W0446040341
5.0 CPC-SF.ST.0446.0500.L.Z4.F0010A.HB 6 4.8 57 13 19 0.1 4 W0446050341
6.0 CPC-SF.ST.0446.0600.L.Z4.F0010A.HB 6 5.8 57 13 19 0.1 4 W0446060341
8.0 CPC-SF.ST.0446.0800.L.Z4.F0020A.HB 8 7.7 63 21 25 0.2 4 W0446080341
10.0 CPC-SF.ST.0446.1000.L.Z4.F0020A.HB 10 9.7 72 22 30 0.2 4 W0446100341
12.0 CPC-SF.ST.0446.1200.L.Z4.F0030A.HB 12 11.6 83 26 36 0.3 4 W0446120341
16.0 CPC-SF.ST.0446.1600.L.Z4.F0030A.HB 16 15.5 92 36 42 0.3 4 W0446160341
20.0 CPC-SF.ST.0446.2000.L.Z4.F0030A.HB 20 19.5 104 41 52 0.3 4 W0446200341

Solid carbide tools / Milling
