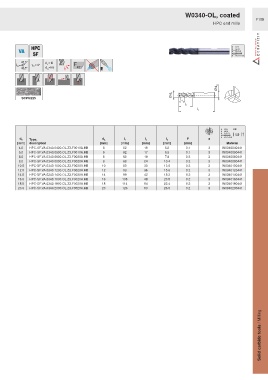

Page 1105 - Ceratizit Catalog

W0340-OL, coated
F108
HPC end mills

Ø d A
Ø d 1
SCPM225
l 4
l 2
l 1

HB
d 1 Type, d A l 1 l 2 l 4 F z
[mm] description [mm] [mm] [mm] [mm] [mm] Material
4.0 HPC-SF.VA.0340.0400.OL.Z3.F0010A.HB 6 62 16 5.2 0.1 3 W0340040441
5.0 HPC-SF.VA.0340.0500.OL.Z3.F0010A.HB 6 62 17 6.5 0.1 3 W0340050441
6.0 HPC-SF.VA.0340.0600.OL.Z3.F0020A.HB 6 62 18 7.8 0.2 3 W0340060441
8.0 HPC-SF.VA.0340.0800.OL.Z3.F0020A.HB 8 68 24 10.4 0.2 3 W0340080441
10.0 HPC-SF.VA.0340.1000.OL.Z3.F0020A.HB 10 80 30 13.0 0.2 3 W0340100441
12.0 HPC-SF.VA.0340.1200.OL.Z3.F0020A.HB 12 93 36 15.6 0.2 3 W0340120441
14.0 HPC-SF.VA.0340.1400.OL.Z3.F0020A.HB 14 99 42 18.2 0.2 3 W0340140441
16.0 HPC-SF.VA.0340.1600.OL.Z3.F0020A.HB 16 108 48 20.8 0.2 3 W0340160441
18.0 HPC-SF.VA.0340.1800.OL.Z3.F0020A.HB 18 114 54 23.4 0.2 3 W0340180441
20.0 HPC-SF.VA.0340.2000.OL.Z3.F0020A.HB 20 126 60 26.0 0.2 3 W0340200441

Solid carbide tools / Milling
