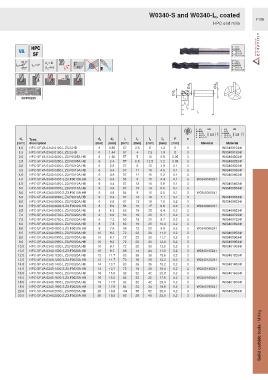

Page 1103 - Ceratizit Catalog

W0340-S and W0340-L, coated
F106
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPM225 l 4
l 2
l 3
l 1

HB HB
d 1 Type, d A d 3 l 1 l 2 l 3 l 4 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm] Material Material
1.0 HPC-SF.VA.0340.0100.L.Z3.S.HB 6 0.95 57 2.5 5 1.3 0 3 W0340010341
1.5 HPC-SF.VA.0340.0150.L.Z3.S.HB 6 1.44 57 4 7.5 1.9 0 3 W0340015341
2.0 HPC-SF.VA.0340.0200.L.Z3.F0005A.HB 6 1.92 57 5 10 2.6 0.05 3 W0340020341
2.5 HPC-SF.VA.0340.0250.L.Z3.F0005A.HB 6 2.4 57 6.5 12.5 3.2 0.05 3 W0340025341
3.0 HPC-SF.VA.0340.0300.L.Z3.F0010A.HB 6 2.9 57 8 15 3.9 0.1 3 W0340030341
3.5 HPC-SF.VA.0340.0350.L.Z3.F0010A.HB 6 3.4 57 11 16 4.5 0.1 3 W0340035341
4.0 HPC-SF.VA.0340.0400.L.Z3.F0010A.HB 6 3.9 57 11 16 5.2 0.1 3 W0340040341
4.0 HPC-SF.VA.0340.0400.S.Z3.F0010A.HB 6 3.9 54 8 15 4.4 0.1 3 W0340040241
4.5 HPC-SF.VA.0340.0450.L.Z3.F0010A.HB 6 4.4 57 13 19 5.8 0.1 3 W0340045341
5.0 HPC-SF.VA.0340.0500.L.Z3.F0010A.HB 6 4.9 57 13 19 6.5 0.1 3 W0340050341
5.0 HPC-SF.VA.0340.0500.S.Z3.F0010A.HB 6 4.9 54 9 16 5.5 0.1 3 W0340050241
5.5 HPC-SF.VA.0340.0550.L.Z3.F0010A.HB 6 5.4 57 13 19 7.1 0.1 3 W0340055341
6.0 HPC-SF.VA.0340.0600.L.Z3.F0020A.HB 6 5.9 57 13 19 7.8 0.2 3 W0340060341
6.0 HPC-SF.VA.0340.0600.S.Z3.F0020A.HB 6 5.9 54 10 17 6.6 0.2 3 W0340060241
6.5 HPC-SF.VA.0340.0650.L.Z3.F0020A.HB 8 6.3 63 19 25 8.4 0.2 3 W0340065341
7.0 HPC-SF.VA.0340.0700.L.Z3.F0020A.HB 8 6.8 63 19 25 9.1 0.2 3 W0340070341
7.5 HPC-SF.VA.0340.0750.L.Z3.F0020A.HB 8 7.3 63 19 25 9.7 0.2 3 W0340075341
8.0 HPC-SF.VA.0340.0800.L.Z3.F0020A.HB 8 7.8 63 19 25 10.4 0.2 3 W0340080341
8.0 HPC-SF.VA.0340.0800.S.Z3.F0020A.HB 8 7.8 58 12 20 8.8 0.2 3 W0340080241
8.5 HPC-SF.VA.0340.0850.L.Z3.F0020A.HB 10 8.2 72 22 30 11.0 0.2 3 W0340085341
9.0 HPC-SF.VA.0340.0900.L.Z3.F0020A.HB 10 8.7 72 22 30 11.7 0.2 3 W0340090341
9.5 HPC-SF.VA.0340.0950.L.Z3.F0020A.HB 10 9.2 72 22 30 12.3 0.2 3 W0340095341
10.0 HPC-SF.VA.0340.1000.L.Z3.F0020A.HB 10 9.7 72 22 30 13.0 0.2 3 W0340100341
10.0 HPC-SF.VA.0340.1000.S.Z3.F0020A.HB 10 9.7 66 14 24 11.0 0.2 3 W0340100241
12.0 HPC-SF.VA.0340.1200.L.Z3.F0020A.HB 12 11.7 83 26 36 15.6 0.2 3 W0340120341
12.0 HPC-SF.VA.0340.1200.S.Z3.F0020A.HB 12 11.7 73 16 26 13.2 0.2 3 W0340120241
14.0 HPC-SF.VA.0340.1400.L.Z3.F0020A.HB 14 13.7 83 26 36 18.2 0.2 3 W0340140341
14.0 HPC-SF.VA.0340.1400.S.Z3.F0020A.HB 14 13.7 75 18 28 15.4 0.2 3 W0340140241
16.0 HPC-SF.VA.0340.1600.L.Z3.F0020A.HB 16 15.5 92 32 42 20.8 0.2 3 W0340160341
16.0 HPC-SF.VA.0340.1600.S.Z3.F0020A.HB 16 15.5 82 22 32 17.6 0.2 3 W0340160241
18.0 HPC-SF.VA.0340.1800.L.Z3.F0020A.HB 18 17.5 92 32 42 23.4 0.2 3 W0340180341
18.0 HPC-SF.VA.0340.1800.S.Z3.F0020A.HB 18 17.5 84 24 34 19.8 0.2 3 W0340180241
20.0 HPC-SF.VA.0340.2000.L.Z3.F0020A.HB 20 19.5 104 38 52 26.0 0.2 3 W0340200341
20.0 HPC-SF.VA.0340.2000.S.Z3.F0020A.HB 20 19.5 92 26 40 22.0 0.2 3 W0340200241

Solid carbide tools / Milling
