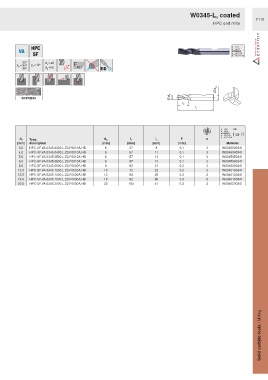

Page 1107 - Ceratizit Catalog

W0345-L, coated
F110
HPC end mills

Ø d A
Ø d 1
SCPM240
l 2
l 1

HB
d 1 Type, d A l 1 l 2 F z
[mm] description [mm] [mm] [mm] [mm] Material
3.0 HPC-SF.VA.0345.0300.L.Z3.F0010A.HB 6 57 8 0.1 3 W0345030341
4.0 HPC-SF.VA.0345.0400.L.Z3.F0010A.HB 6 57 11 0.1 3 W0345040341
5.0 HPC-SF.VA.0345.0500.L.Z3.F0010A.HB 6 57 13 0.1 3 W0345050341
6.0 HPC-SF.VA.0345.0600.L.Z3.F0010A.HB 6 57 13 0.1 3 W0345060341
8.0 HPC-SF.VA.0345.0800.L.Z3.F0020A.HB 8 63 21 0.2 3 W0345080341
10.0 HPC-SF.VA.0345.1000.L.Z3.F0020A.HB 10 72 22 0.2 3 W0345100341
12.0 HPC-SF.VA.0345.1200.L.Z3.F0030A.HB 12 83 26 0.3 3 W0345120341
16.0 HPC-SF.VA.0345.1600.L.Z3.F0030A.HB 16 92 36 0.3 3 W0345160341
20.0 HPC-SF.VA.0345.2000.L.Z3.F0030A.HB 20 104 41 0.3 3 W0345200341

Solid carbide tools / Milling
