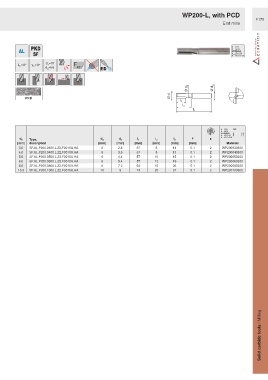

Page 1167 - Ceratizit Catalog

WP200-L, with PCD
F170
End mills

h7

Ø d 3 Ø d A
Ø d 1
PKD
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
3.0 SF.AL.P200.0300.L.Z2.F0010A.HA 6 2.8 57 6 11 0.1 2 WP200030300
4.0 SF.AL.P200.0400.L.Z2.F0010A.HA 6 3.5 57 8 13 0.1 2 WP200040300
5.0 SF.AL.P200.0500.L.Z2.F0010A.HA 6 4.4 57 10 15 0.1 2 WP200050300
6.0 SF.AL.P200.0600.L.Z2.F0010A.HA 6 5.4 57 12 19 0.1 2 WP200060300
8.0 SF.AL.P200.0800.L.Z2.F0010A.HA 8 7.2 64 16 26 0.1 2 WP200080300
10.0 SF.AL.P200.1000.L.Z2.F0010A.HA 10 9 74 20 31 0.1 2 WP200100300

Solid carbide tools / Milling
