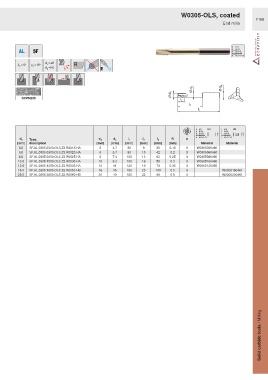

Page 1165 - Ceratizit Catalog

W0305-OLS, coated
F168
End mills

Ø d 3 Ø d A
Ø d 1
SCPN235
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
5.0 SF.AL.0305.0500.OLS.Z3.R0015.HA 6 4.7 80 8 30 0.15 3 W0305050460
6.0 SF.AL.0305.0600.OLS.Z3.R0020.HA 6 5.7 80 10 42 0.2 3 W0305060460
8.0 SF.AL.0305.0800.OLS.Z3.R0025.HA 8 7.4 100 13 62 0.25 3 W0305080460
10.0 SF.AL.0305.1000.OLS.Z3.R0030.HA 10 9.2 100 16 58 0.3 3 W0305100460
12.0 SF.AL.0305.1200.OLS.Z3.R0035.HA 12 11 120 19 73 0.35 3 W0305120460
16.0 SF.AL.0305.1600.OLS.Z3.R0050.HB 16 15 150 25 100 0.5 3 W0305160461
20.0 SF.AL.0305.2000.OLS.Z3.R0060.HB 20 19 150 32 98 0.6 3 W0305200461

Solid carbide tools / Milling
