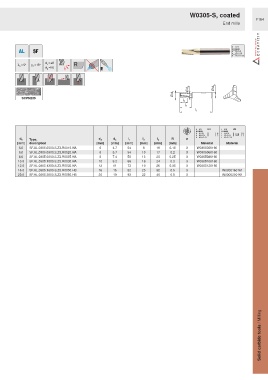

Page 1161 - Ceratizit Catalog

W0305-S, coated
F164
End mills

Ø d 3 Ø d A
Ø d 1
SCPN235
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
5.0 SF.AL.0305.0500.S.Z3.R0015.HA 6 4.7 54 8 16 0.15 3 W0305050160
6.0 SF.AL.0305.0600.S.Z3.R0020.HA 6 5.7 54 10 17 0.2 3 W0305060160
8.0 SF.AL.0305.0800.S.Z3.R0025.HA 8 7.4 58 13 20 0.25 3 W0305080160
10.0 SF.AL.0305.1000.S.Z3.R0030.HA 10 9.2 66 16 24 0.3 3 W0305100160
12.0 SF.AL.0305.1200.S.Z3.R0035.HA 12 11 73 19 26 0.35 3 W0305120160
16.0 SF.AL.0305.1600.S.Z3.R0050.HB 16 15 82 25 32 0.5 3 W0305160161
20.0 SF.AL.0305.2000.S.Z3.R0060.HB 20 19 92 32 40 0.6 3 W0305200161

Solid carbide tools / Milling
