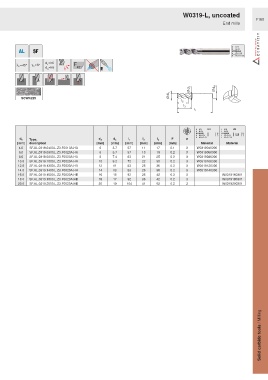

Page 1157 - Ceratizit Catalog

W0319-L, uncoated
F160
End mills

Ø d 3 Ø d A
Ø d 1
SCWN225
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
4.0 SF.AL.0319.0400.L.Z3.F0010A.HA 6 3.7 57 11 17 0.1 3 W0319040300
6.0 SF.AL.0319.0600.L.Z3.F0020A.HA 6 5.7 57 13 19 0.2 3 W0319060300
8.0 SF.AL.0319.0800.L.Z3.F0020A.HA 8 7.4 63 21 25 0.2 3 W0319080300
10.0 SF.AL.0319.1000.L.Z3.F0020A.HA 10 9.2 72 22 30 0.2 3 W0319100300
12.0 SF.AL.0319.1200.L.Z3.F0020A.HA 12 11 83 26 36 0.2 3 W0319120300
14.0 SF.AL.0319.1400.L.Z3.F0020A.HA 14 13 83 26 36 0.2 3 W0319140300
16.0 SF.AL.0319.1600.L.Z3.F0020A.HB 16 15 92 36 42 0.2 3 W0319160301
18.0 SF.AL.0319.1800.L.Z3.F0020A.HB 18 17 92 36 42 0.2 3 W0319180301
20.0 SF.AL.0319.2000.L.Z3.F0020A.HB 20 19 104 41 52 0.2 3 W0319200301

Solid carbide tools / Milling
