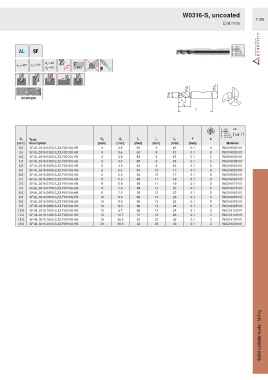

Page 1155 - Ceratizit Catalog

W0316-S, uncoated
F158
End mills

Ø d 3 Ø d A
Ø d 1
SCWN225
l 2
l 3
l 1

HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
3.0 SF.AL.0316.0300.S.Z3.F0010A.HB 6 2.9 50 5 12 0.1 3 W0316030101
3.5 SF.AL.0316.0350.S.Z3.F0010A.HB 6 3.4 50 6 13 0.1 3 W0316035101
4.0 SF.AL.0316.0400.S.Z3.F0010A.HB 6 3.9 54 8 15 0.1 3 W0316040101
4.5 SF.AL.0316.0450.S.Z3.F0010A.HB 6 4.4 54 8 15 0.1 3 W0316045101
5.0 SF.AL.0316.0500.S.Z3.F0010A.HB 6 4.9 54 9 16 0.1 3 W0316050101
5.5 SF.AL.0316.0550.S.Z3.F0010A.HB 6 5.4 54 10 17 0.1 3 W0316055101
6.0 SF.AL.0316.0600.S.Z3.F0010A.HB 6 5.9 54 10 17 0.1 3 W0316060101
6.5 SF.AL.0316.0650.S.Z3.F0010A.HB 8 6.3 58 11 19 0.1 3 W0316065101
7.0 SF.AL.0316.0700.S.Z3.F0010A.HB 8 6.8 58 11 19 0.1 3 W0316070101
7.5 SF.AL.0316.0750.S.Z3.F0010A.HB 8 7.3 58 12 20 0.1 3 W0316075101
8.0 SF.AL.0316.0800.S.Z3.F0010A.HB 8 7.8 58 12 20 0.1 3 W0316080101
8.5 SF.AL.0316.0850.S.Z3.F0010A.HB 10 8.3 66 13 23 0.1 3 W0316085101
9.0 SF.AL.0316.0900.S.Z3.F0010A.HB 10 8.8 66 13 23 0.1 3 W0316090101
9.5 SF.AL.0316.0950.S.Z3.F0010A.HB 10 9.3 66 14 24 0.1 3 W0316095101
10.0 SF.AL.0316.1000.S.Z3.F0010A.HB 10 9.7 66 14 24 0.1 3 W0316100101
12.0 SF.AL.0316.1200.S.Z3.F0010A.HB 12 11.7 73 16 26 0.1 3 W0316120101
16.0 SF.AL.0316.1600.S.Z3.F0010A.HB 16 15.5 82 22 32 0.1 3 W0316160101
20.0 SF.AL.0316.2000.S.Z3.F0010A.HB 20 19.5 92 26 40 0.1 3 W0316200101

Solid carbide tools / Milling
