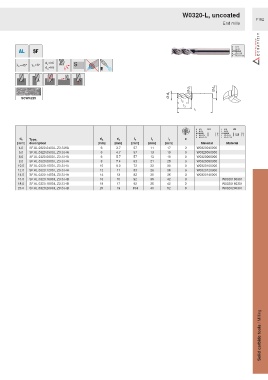

Page 1159 - Ceratizit Catalog

W0320-L, uncoated
F162
End mills

Ø d 3 Ø d A
Ø d 1
SCWN225
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 z
[mm] description [mm] [mm] [mm] [mm] [mm] Material Material
4.0 SF.AL.0320.0400.L.Z3.S.HA 6 3.7 57 11 17 3 W0320040300
5.0 SF.AL.0320.0500.L.Z3.S.HA 6 4.7 57 13 19 3 W0320050300
6.0 SF.AL.0320.0600.L.Z3.S.HA 6 5.7 57 13 19 3 W0320060300
8.0 SF.AL.0320.0800.L.Z3.S.HA 8 7.4 63 21 25 3 W0320080300
10.0 SF.AL.0320.1000.L.Z3.S.HA 10 9.2 72 22 30 3 W0320100300
12.0 SF.AL.0320.1200.L.Z3.S.HA 12 11 83 26 36 3 W0320120300
14.0 SF.AL.0320.1400.L.Z3.S.HA 14 13 83 26 36 3 W0320140300
16.0 SF.AL.0320.1600.L.Z3.S.HB 16 15 92 36 42 3 W0320160301
18.0 SF.AL.0320.1800.L.Z3.S.HB 18 17 92 36 42 3 W0320180301
20.0 SF.AL.0320.2000.L.Z3.S.HB 20 19 104 41 52 3 W0320200301

Solid carbide tools / Milling
