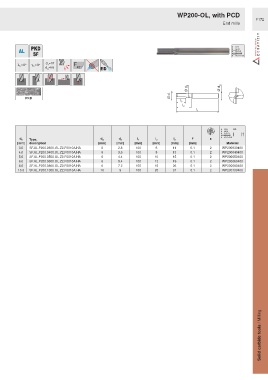

Page 1169 - Ceratizit Catalog

WP200-OL, with PCD
F172
End mills

h7

Ø d 3 Ø d A
Ø d 1
PKD
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
3.0 SF.AL.P200.0300.OL.Z2.F0010A.HA 6 2.8 100 6 11 0.1 2 WP200030400
4.0 SF.AL.P200.0400.OL.Z2.F0010A.HA 6 3.5 100 8 13 0.1 2 WP200040400
5.0 SF.AL.P200.0500.OL.Z2.F0010A.HA 6 4.4 100 10 15 0.1 2 WP200050400
6.0 SF.AL.P200.0600.OL.Z2.F0010A.HA 6 5.4 100 12 19 0.1 2 WP200060400
8.0 SF.AL.P200.0800.OL.Z2.F0010A.HA 8 7.2 100 16 26 0.1 2 WP200080400
10.0 SF.AL.P200.1000.OL.Z2.F0010A.HA 10 9 100 20 31 0.1 2 WP200100400

Solid carbide tools / Milling
