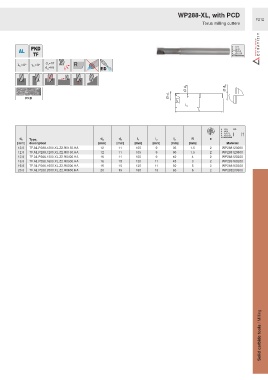

Page 1209 - Ceratizit Catalog

WP288-XL, with PCD
F212
Torus milling cutters

h7

Ø d 3 Ø d A
Ø d 1
PKD
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
12.0 TF.AL.P288.1200.XL.Z2.R0150.HA 12 11 105 9 36 1.5 2 WP288120200
12.0 TF.AL.P288.1200.XL.Z2.R0150.HA 12 11 105 9 60 1.5 2 WP288120800
12.0 TF.AL.P288.1200.XL.Z2.R0400.HA 16 11 100 9 40 4 2 WP288120300
16.0 TF.AL.P288.1600.XL.Z2.R0300.HA 16 15 130 11 45 3 2 WP288160200
16.0 TF.AL.P288.1600.XL.Z2.R0500.HA 16 15 130 11 50 5 2 WP288160300
20.0 TF.AL.P288.2000.XL.Z2.R0600.HA 20 19 160 13 60 6 2 WP288200300
